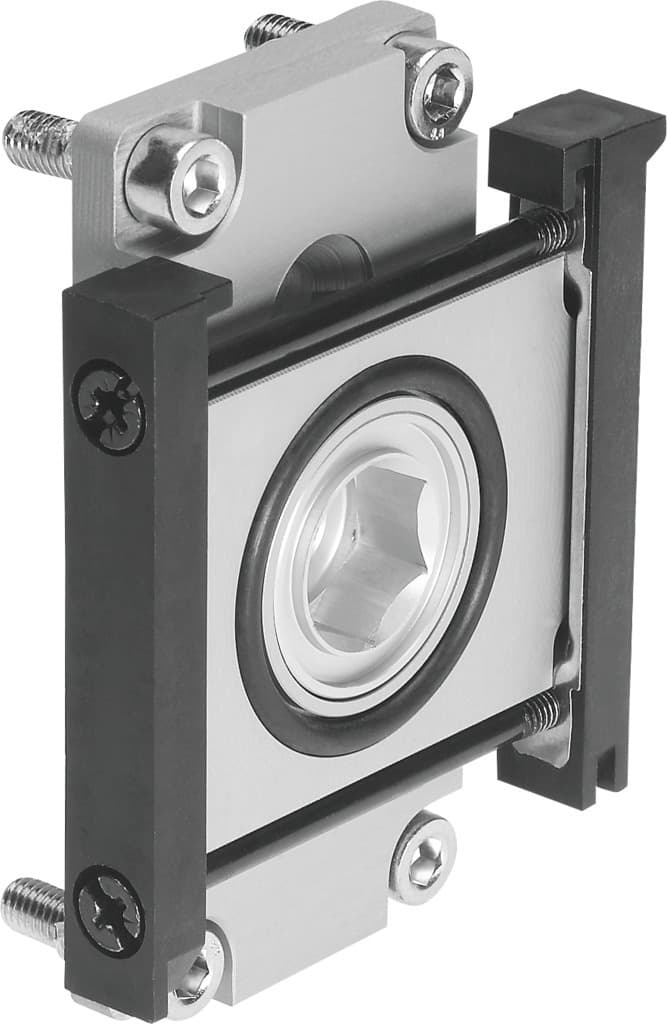

ms6-e-ipm-40-80
Product ID:10914
Updated: 2026/4/3
Key Features
- 1Feature CRC=2 corrosion resistance for moderate stress environments. 2、Ensure RoHS compliance with die-cast aluminum and NBR seals. 3、Operate within 0.1 to 1 MPa for versatile application use. 4、Utilize the compact 141g design in space-constrained installations. 5、Guarantee reliability with ISO 8573-1:2010 compressed air compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Product weight | 141g |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Seals material | NBR | Hollow bolt material | Die-cast aluminum |
| Module connector material | Die-cast aluminum | Material of screws | Steel |
| Manufacturer ID | 543496 |
Specifications may be subject to change without notice
