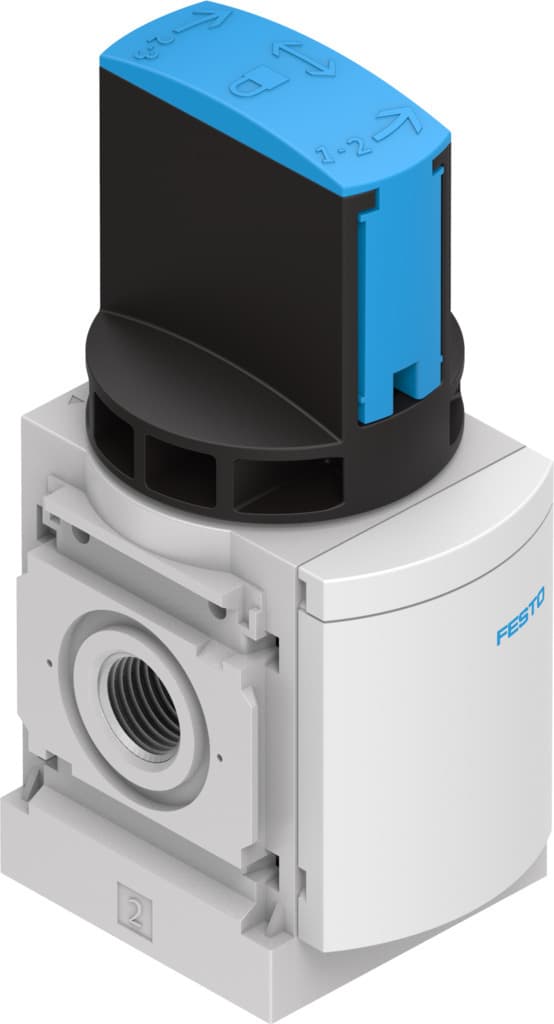

ms6-em1-1/2-f1a
Product ID:200
Updated: 2026/4/3
Key Features
- 1Ensure precise manual on/off control in pneumatic systems. 2、Integrate easily with robust G1/2 pneumatic connections. 3、Achieve high flow rates and efficient pressure regulation. 4、Handle diverse conditions from -10°C to +60°C. 5、Minimize downtime with manual condensate drain maintenance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Rotary gate valve | Actuation type | Manual |
| Exhaust air function | Without flow control option | Type of control | Direct |
| Application note | Foreign particles can remain stuck to the product or form during installation. Depending on the application, it may be necessary to purge the product with clean compressed air, clean it after installation and operate it with ducted exhaust air. | Symbol | 00991670 |
| Valve function | 3/2, bistable | Operating pressure | 0bar 18bar |
| C value | 30.8l/sbar | b-value | 0.57 |
| Standard nominal flow rate | 8700l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
| Flow direction | Non-reversible | Product weight | 580g |
| Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
| Pneumatic connection 3 | G1/2 | Seals material | TPE-U(PU) |
| Housing material | Die-cast aluminum | Manufacturer ID | 8183562 |
Specifications may be subject to change without notice
