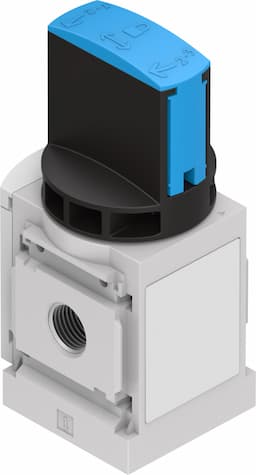

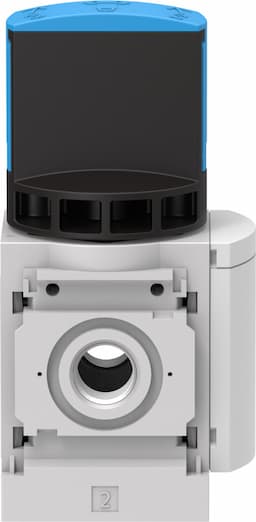

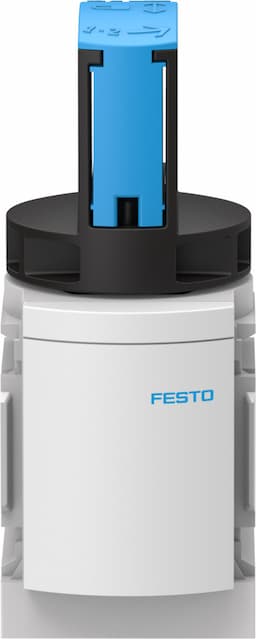

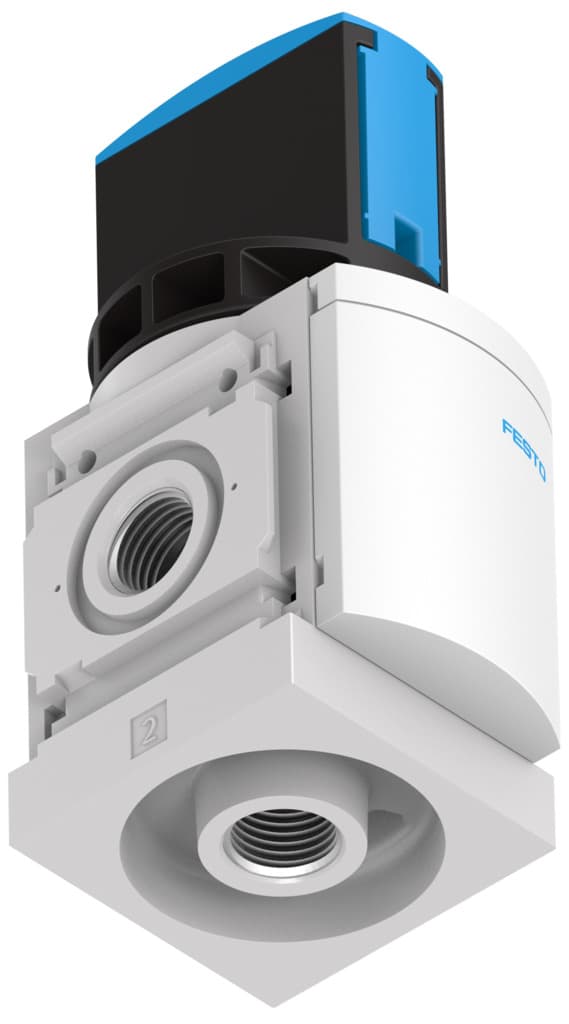

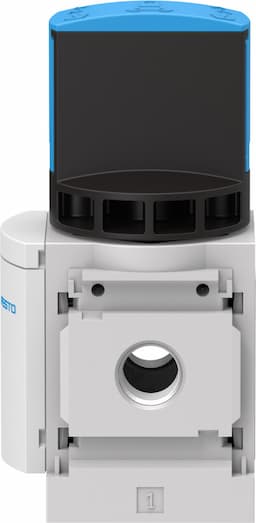

ms6-em1-1/4
Product ID:10634
Updated: 2026/4/3
Key Features
- 1Ensure precise ON-OFF control with a 3/2-way bistable design. 2、Operate reliably from -10°C to +60°C with inert gas compatibility. 3、Benefit from a durable die-cast aluminum housing and reinforced valve. 4、Handle high flow rates up to 3000 L/min and pressures to 18 bar. 5、Meet cULus and RoHS standards for safety and environmental compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Rotary gate valve | Actuation type | Manual |
| Exhaust air function | Without flow control option | Type of control | Direct |
| Symbol | 00991670 | Valve function | 3/2, bistable |
| Operating pressure | 0bar 18bar | C value | 10.7l/sbar |
| b-value | 0.56 | Standard nominal flow rate | 3000l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
| Flow direction | Non-reversible | Product weight | 580g |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
| Pneumatic connection 3 | G1/2 | Seals material | TPE-U(PU) |
| Housing material | Die-cast aluminum | Manufacturer ID | 541271 |
Specifications may be subject to change without notice
