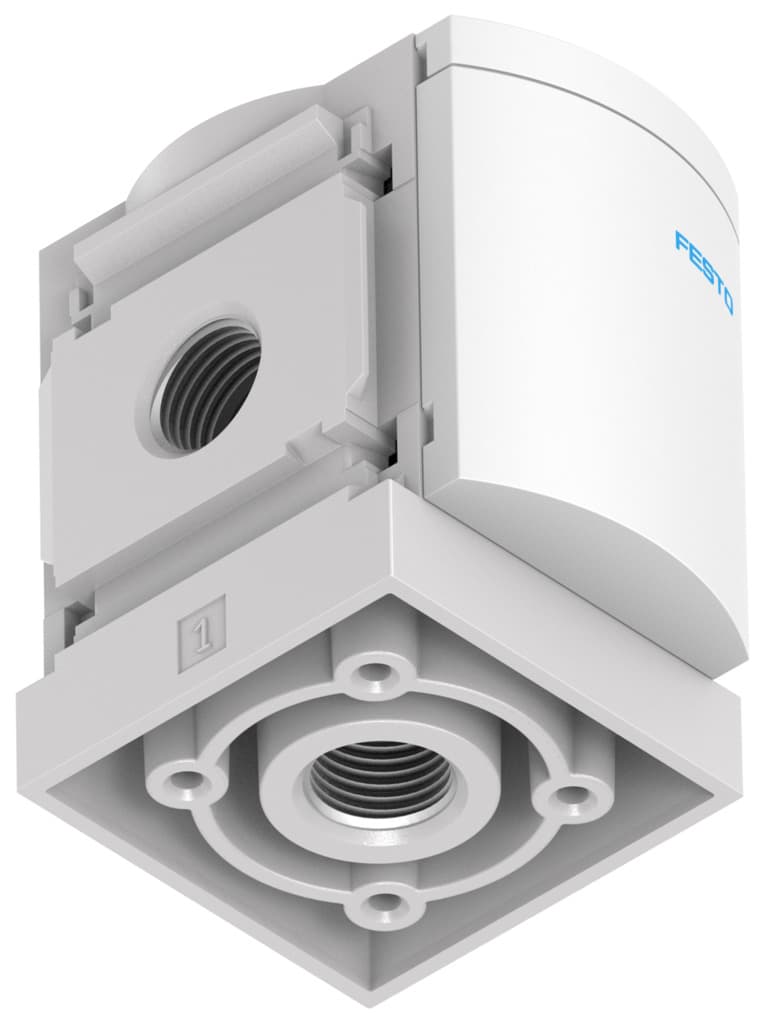

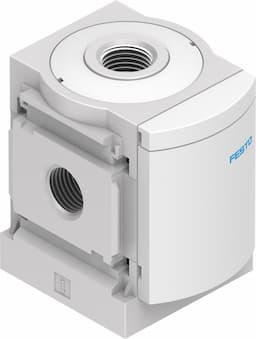

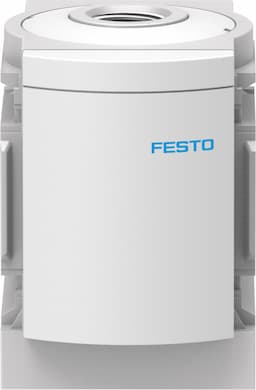

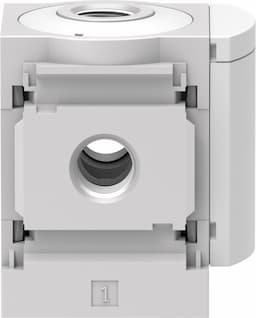

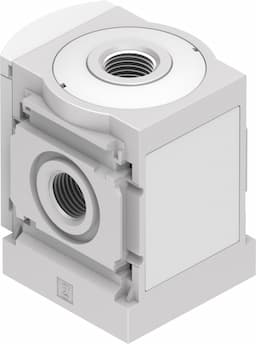

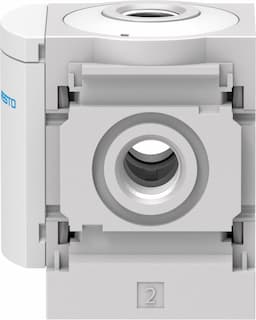

ms6-frm-1/2
Product ID:9259
Updated: 2026/7/4
Key Features
- 1Distribute compressed air reliably with up to 14,700 L/min flow.
- 2Install flexibly using the optional mounting position.
- 3Prevent backflow to ensure consistent system pressure.
- 4Ensure durability with CRC 2 corrosion resistance.
- 5Integrate easily by supporting additional modules.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Structural design | Branching module |
| Symbol | 00991510 | Operating pressure | 0bar 20bar |
| Standard nominal flow rate in main flow direction 1 -> 2 | 14700l/min | Standard nominal flow rate outlet at top | 4400l/min |
| Standard nominal flow rate outlet down | 4600l/min | Operating voltage range AC | 0V 250V |
| DC operating voltage range | 0V 125V | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
| For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 458g |
| Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
| Pneumatic connection 3 | G1/2 | Pneumatic connection 4 | G1/2 |
| Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
| Manufacturer ID | 529853 |
Specifications may be subject to change without notice
