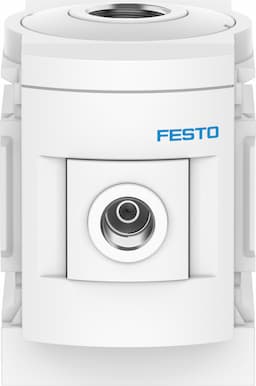

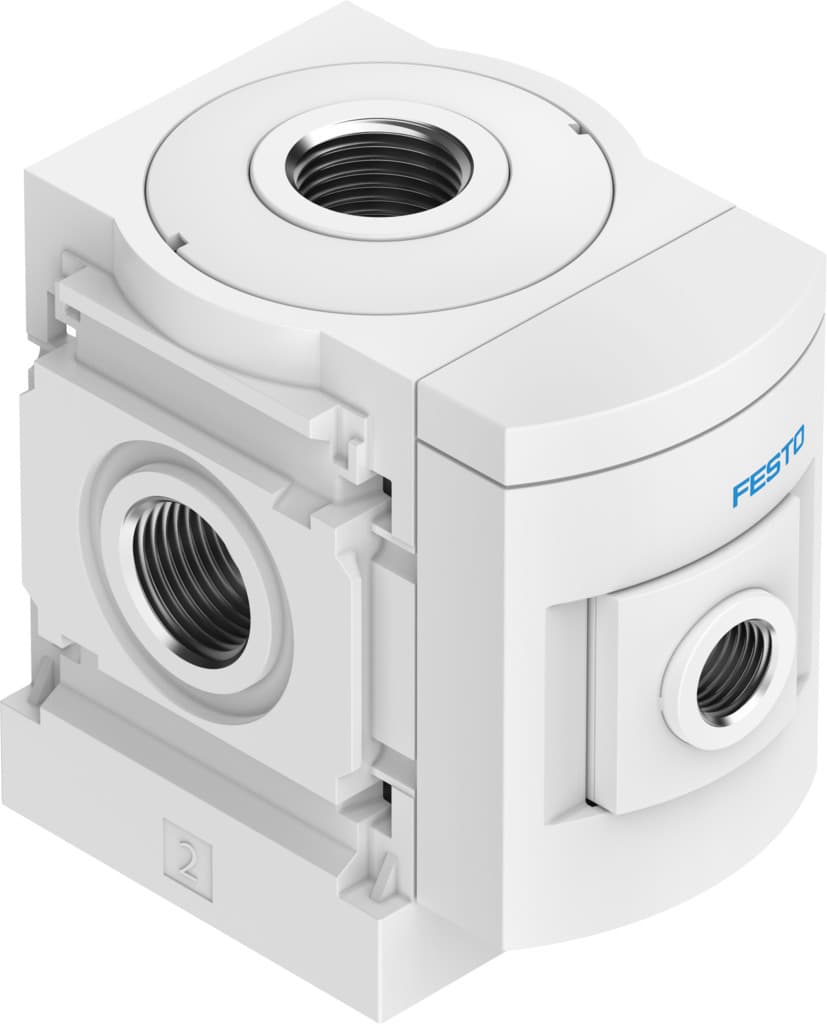

ms6-frm-1/2-a4-f1a
Product ID:199
Updated: 2026/7/4
Key Features
- 1Ensure reliable compressed air preparation and system supply.
- 2Offer various pneumatic connections including 1/4, 3/8, and 1/2 threads.
- 3Feature an integrated non-return function to prevent backflow.
- 4Support easy integration with compatible EN pressure gauges.
- 5Deliver high nominal flow rates up to 9200 l/min.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Application note | Foreign particles can remain stuck to the product or form during installation. Depending on the application, it may be necessary to purge the product with clean compressed air, clean it after installation and operate it with ducted exhaust air. | Mounting position | Any |
| Structural design | Branching module | Symbol | 00991510 |
| Operating pressure | 0bar 20bar | Standard nominal flow rate in main flow direction 1 -> 2 | 14700l/min |
| Standard nominal flow rate outlet at top | 4400l/min | Standard nominal flow rate outlet down | 4600l/min |
| Operating voltage range AC | 0V 250V | DC operating voltage range | 0V 125V |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Storage temperature | -10°C 60°C |
| For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 458g |
| Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
| Pneumatic connection 3 | G1/2 | Pneumatic connection 4 | G1/2 |
| Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
| Manufacturer ID | 8183566 |
Specifications may be subject to change without notice
