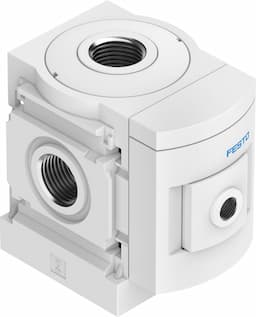

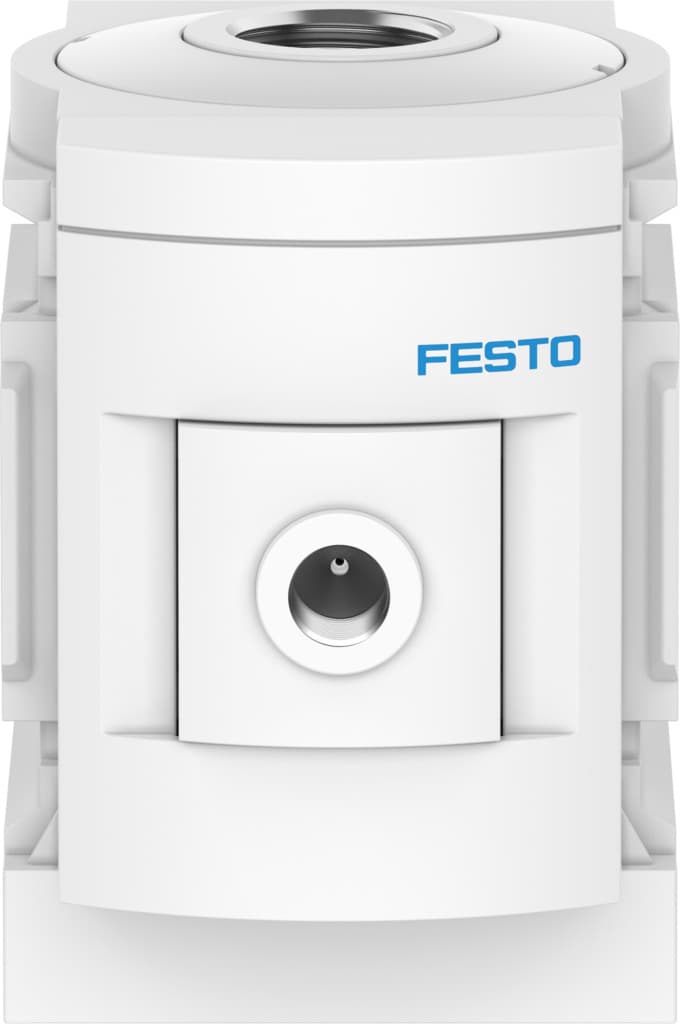

ms6-frm-1/2-a8-f1a
Product ID:198
Updated: 2026/4/3
Key Features
- 1Optimize air distribution with a 4-connection branching module. 2、Simplify control using standardized IO-Link communication technology. 3、Integrate flexibly with in-line or bracket mounting options. 4、Ensure reliable performance with ISO-conformant quality construction. 5、Reduce material needs and streamline your pneumatic system design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Application note | Foreign particles can remain stuck to the product or form during installation. Depending on the application, it may be necessary to purge the product with clean compressed air, clean it after installation and operate it with ducted exhaust air. | Mounting position | Any |
| Structural design | Branching module | Symbol | 00991510 |
| Operating pressure | 0bar 20bar | Standard nominal flow rate in main flow direction 1 -> 2 | 14700l/min |
| Standard nominal flow rate outlet at top | 4400l/min | Standard nominal flow rate outlet down | 4600l/min |
| Operating voltage range AC | 0V 250V | DC operating voltage range | 0V 125V |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Storage temperature | -10°C 60°C |
| For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 458g |
| Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
| Pneumatic connection 3 | G1/2 | Pneumatic connection 4 | G1/2 |
| Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
| Manufacturer ID | 8183567 |
Specifications may be subject to change without notice
