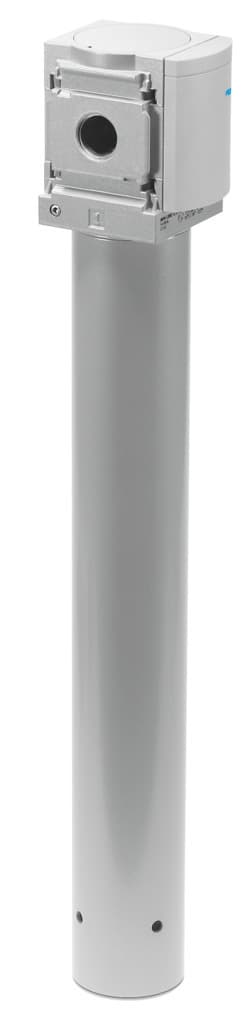

ms6-ldm1-1/2-p40
Product ID:11000
Updated: 2026/4/3
Key Features
- 1Remove moisture efficiently with a 400L/min flow rate. 2、Mount vertically with +/-5° adjustment for flexible installation. 3、Operate reliably within a 3-12.5 bar pressure range. 4、Ensure consistent air quality with robust Festo engineering. 5、Simplify maintenance with an accessible, straightforward design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Mounting position | Vertical +/- 5° | Structural design | Membrane dryer |
| Symbol | 00991516 | Operating pressure | 3bar 12.5bar |
| Standard nominal flow rate | 400l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [1:4:2] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Pressure dew point reduction | 20K |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20°C 60°C | For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:3:2] | Temperature of medium | 2°C 50°C |
| Ambient temperature | 2°C 50°C | Product weight | 1300g |
| Type of mounting | Optionally: Line installation With accessories | Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 | Note on materials | RoHS-compliant |
| Housing material | Die-cast aluminum | Material of bowl | Wrought aluminum alloy |
| Manufacturer ID | 543650 |
Specifications may be subject to change without notice
