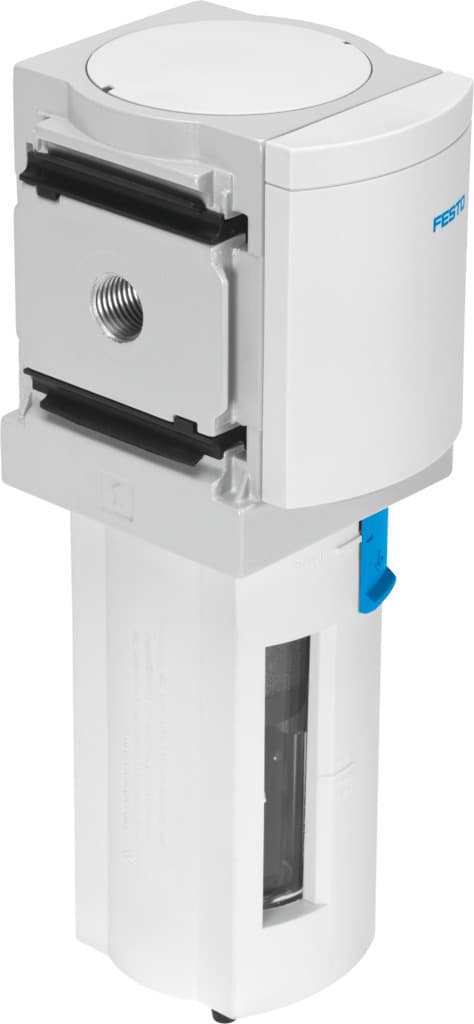

ms6-lfm-3/8-brm
Product ID:9237
Updated: 2026/7/4
Key Features
- 1Ensure clean air with a 1μm filtration grade.
- 2Manage condensate easily via the manual rotary drain.
- 3Fit compact spaces with a 62 mm grid dimension.
- 4Integrate seamlessly with G1/4, G3/8, or NPT connections.
- 5Optimize flow and energy efficiency in compressed air systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Series | MS | Size | 6 |
| Structural design | Fiber filter | Grade of filtration | 1μm |
| Condensate drain | Manually rotating | Symbol | 00991519 |
| Operating pressure | 0bar 20bar | Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] Inert gas |
| Air quality class at the output | Compressed air as per ISO?8573-1:2010 [5:4:3] | Max. standard flow rate for air quality class | 950l/min |
| Min. standard flow rate for air quality class | 140l/min | Filter efficiency | 99.99% |
| Max. condensate volume | 38ml | Bowl guard | Plastic bowl guard |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Storage temperature | -10°C 60°C |
| Filter efficiency, fine particles | 99% | Residual oil content | 0.5mg/m3 |
| Filter efficiency, oil aerosol | 90% | Type of mounting | Optionally: Line installation With accessories |
| Mounting position | Vertical +/- 5° | Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 | Housing material | Die-cast aluminum |
| Compressed air filter material | Borosilicate fiber | Material of bowl | PC |
| Seals material | NBR | Note on materials | RoHS-compliant |
| Product weight | 600g | Manufacturer ID | 529675 |
Specifications may be subject to change without notice
