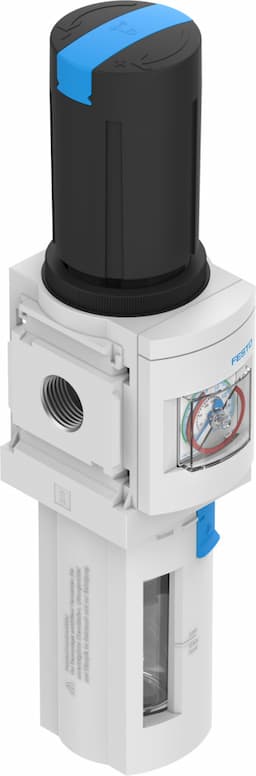

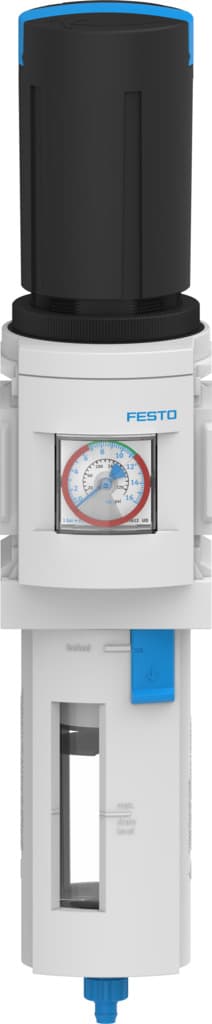

ms6-lfr-1/2-d7-e-r-m-rg-as
Product ID:14740
Updated: 2026/4/3
Key Features
- 1Remove contaminants down to 40 μm for clean compressed air. 2、Construct robust polycarbonate bowls for high-temperature durability. 3、Integrate easily with flexible G 1/2 port connection options. 4、Choose manual or automatic drain for convenient system maintenance. 5、Achieve high flow rates with integrated return flow efficiency.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Manually rotating |
| Structural design | Filter regulator with pressure gauge | Max. condensate volume | 38ml |
| Controller function | Outlet pressure constant With secondary exhausting | Bowl guard | Plastic bowl guard |
| Degree of condensate separation | 75% | Symbol | 00991589 |
| Pressure gauge | Red-green scale | Operating pressure | 0.8bar 20bar |
| Pressure regulation range | 0.5bar 12bar | Max. pressure hysteresis | 3.625psi |
| Standard nominal flow rate | 4500l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Pore size | 40μm |
| Product weight | 875g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
| Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
| Note on materials | RoHS-compliant | Material of operator panel | PA POM |
| Seals material | NBR | Compressed air filter material | PE |
| Housing material | Die-cast aluminum | Diaphragm material | NBR |
| Material of bowl | PC | Separating disc material | POM |
| Manufacturer ID | 579051 |
Specifications may be subject to change without notice
