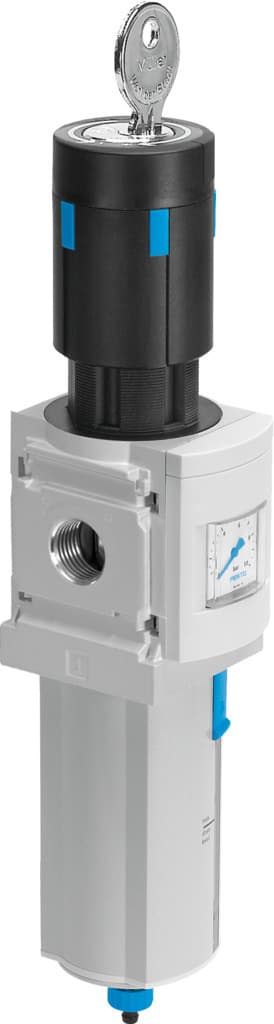

ms6-lfr-3/8-d5-erm-e11
Product ID:164
Updated: 2026/4/3
Key Features
- 1Filter oil, condensate, and dirt for superior air quality. 2、Save up to 18% space with an optimized flow design. 3、Ensure reliable performance across diverse industrial applications. 4、Simplify installation and maintenance with an intuitive interface. 5、Integrate seamlessly into existing Festo standardized systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Actuator lock | Rotary knob with integrated lock | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Manually rotating |
| Structural design | Filter regulator with pressure gauge | Max. condensate volume | 38ml |
| Controller function | Outlet pressure constant With secondary exhausting | Bowl guard | Plastic bowl guard |
| Degree of condensate separation | 75% | Symbol | 00991589 |
| Pressure gauge | with pressure gauge | Operating pressure | 0.8bar 20bar |
| Pressure regulation range | 0.3bar 4bar | Max. pressure hysteresis | 3.625psi |
| Standard nominal flow rate | 6000l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Pore size | 40μm |
| Product weight | 1145g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
| Pneumatic connection 1 | G3/8 | Pneumatic connection 2 | G3/8 |
| Note on materials | RoHS-compliant | Material of operator panel | Aluminum |
| Seals material | NBR | Compressed air filter material | PE |
| Housing material | Die-cast aluminum | Diaphragm material | NBR |
| Material of bowl | PC | Separating disc material | POM |
| Manufacturer ID | 8190246 |
Specifications may be subject to change without notice
