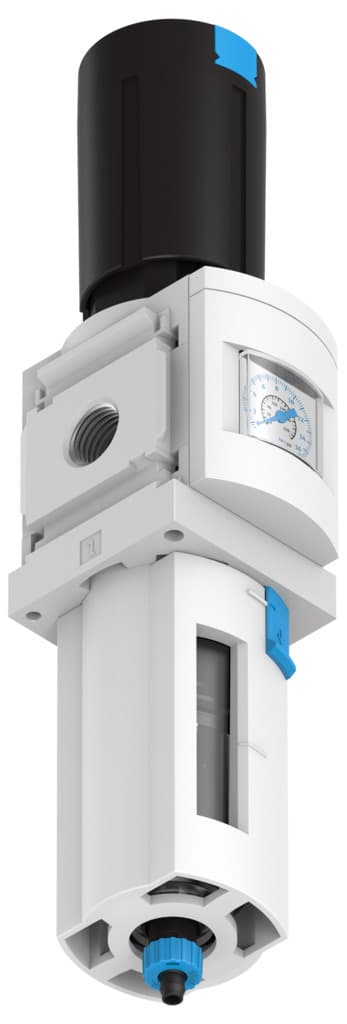

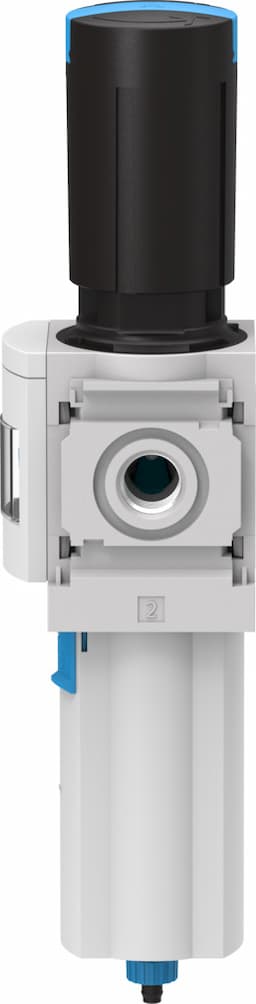

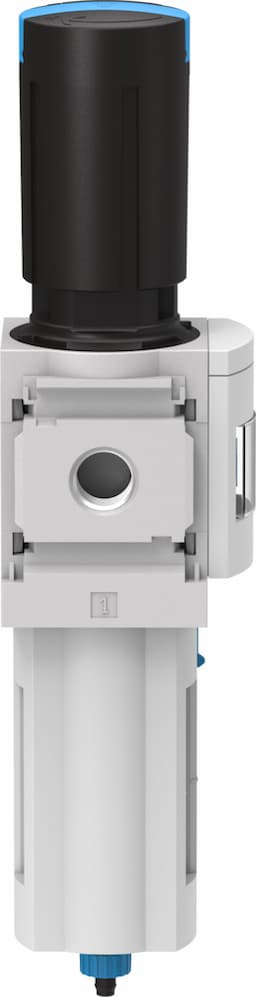

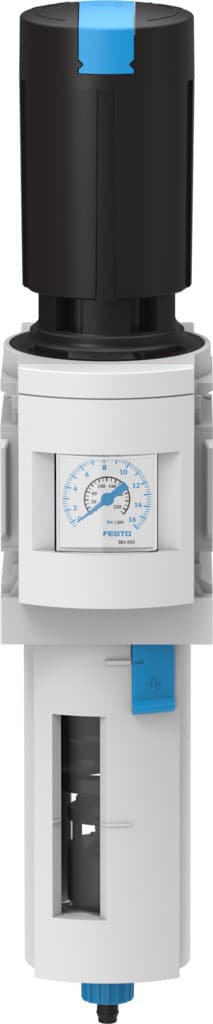

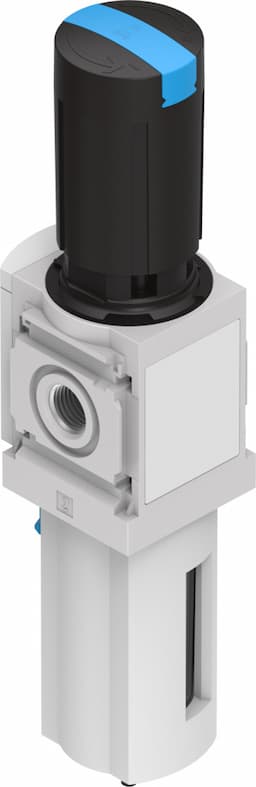

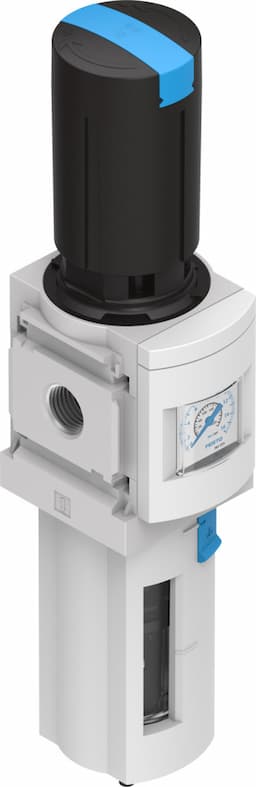

ms6-lfr-3/8-d6-crv-as
Product ID:9145
Updated: 2026/4/3
Key Features
- 1Ensure precise air control with 5 μm filtration and a rotary knob. 2、Reduce downtime risk via robust construction and reliable performance. 3、Integrate seamlessly with existing Festo automation systems and components. 4、Optimize mounting in tight spaces with ±5° vertical angle adjustment. 5、Lower total cost of ownership through durability and reduced maintenance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
| Grade of filtration | 5μm | Condensate drain | Fully automatic Manual, non-detenting |
| Structural design | Filter regulator with pressure gauge | Max. condensate volume | 38ml |
| Controller function | Outlet pressure constant With secondary exhausting | Bowl guard | Plastic bowl guard |
| Degree of condensate separation | 75% | Symbol | 00991587 |
| Pressure gauge | with pressure gauge | Operating pressure | 2bar 12bar |
| Pressure regulation range | 0.3bar 7bar | Max. pressure hysteresis | 3.625psi |
| Standard nominal flow rate | 5000l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:-] Inert gas |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:4] | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Pore size | 5μm |
| Product weight | 875g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
| Pneumatic connection 1 | G3/8 | Pneumatic connection 2 | G3/8 |
| Note on materials | RoHS-compliant | Material of operator panel | PA POM |
| Seals material | NBR | Compressed air filter material | PE |
| Housing material | Die-cast aluminum | Diaphragm material | NBR |
| Material of bowl | PC | Separating disc material | POM |
| Manufacturer ID | 529218 |
Specifications may be subject to change without notice
