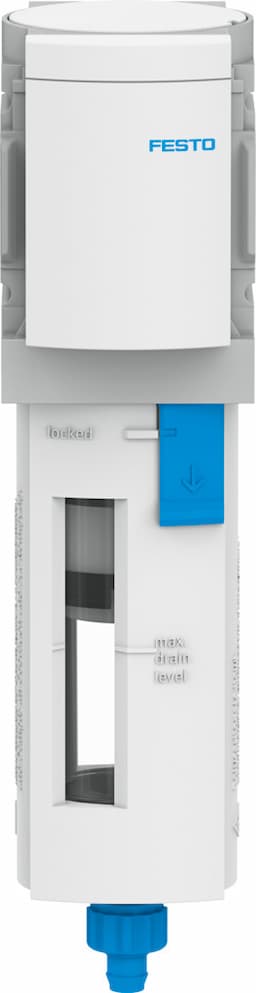

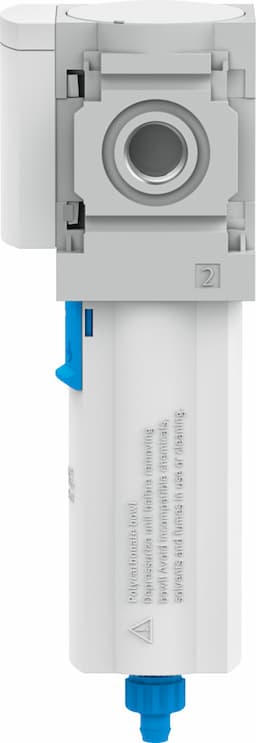

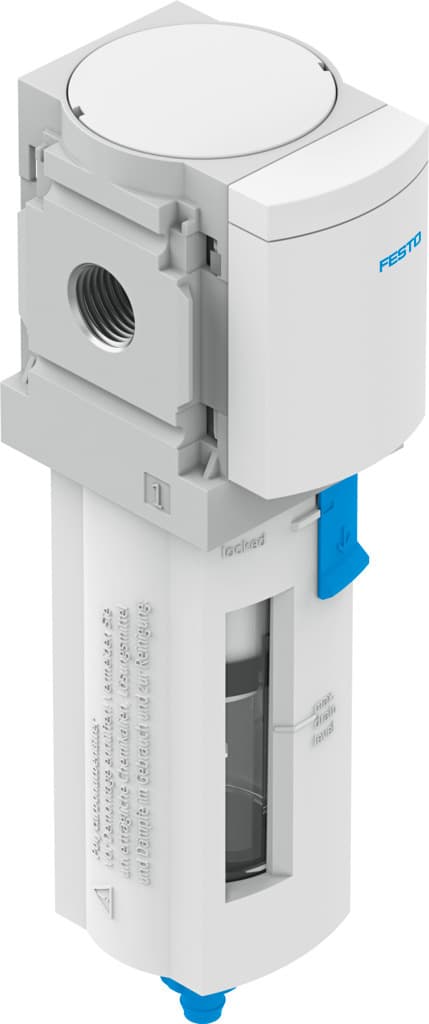

ms6-lfx
Product ID:9067
Updated: 2026/4/3
Key Features
- 1Ensure 0.003 mg/m³ residual oil content for high air purity. 2、Achieve flow rates up to 900 L/min for efficient system operation. 3、Resist moderate corrosion with CRC2-classified housing material. 4、Utilize copper and PTFE-free activated carbon for material compliance. 5、Simplify installation with versatile in-line mounting options.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Mounting position | Vertical +/- 5° | Grade of filtration | 0.01μm 1μm |
| Condensate drain | Fully automatic Manually rotating Semi-automatic | Structural design | Active carbon filter |
| Bowl guard | Plastic bowl guard Integrated as metal bowl guard | Operating pressure | 0bar 20bar |
| Max. standard flow rate for air quality class | 900l/min | Certification | c UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) | UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
| Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) | Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) |
| ATEX category gas | II 2G | ATEX category for dust | II 2D |
| Type of ignition protection for gas | Ex h IIC T6 Gb X | Type of (ignition) protection for dust | Ex h IIIC T60°C Db X |
| Explosive ambient temperature | -10°C <= Ta <= +60°C | Operating medium | Compressed air as per ISO 8573-1:2010 [1:4:2] Inert gas |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:4:1] | Temperature of medium | 5°C 30°C |
| Residual oil content | 0.003mg/m3 | Ambient temperature | -10°C 60°C |
| Type of mounting | Optionally: Line installation With accessories | Note on materials | RoHS-compliant |
| Compressed air filter material | Activated carbon | Housing material | Die-cast aluminum |
| Manufacturer ID | 527672 |
Specifications may be subject to change without notice
