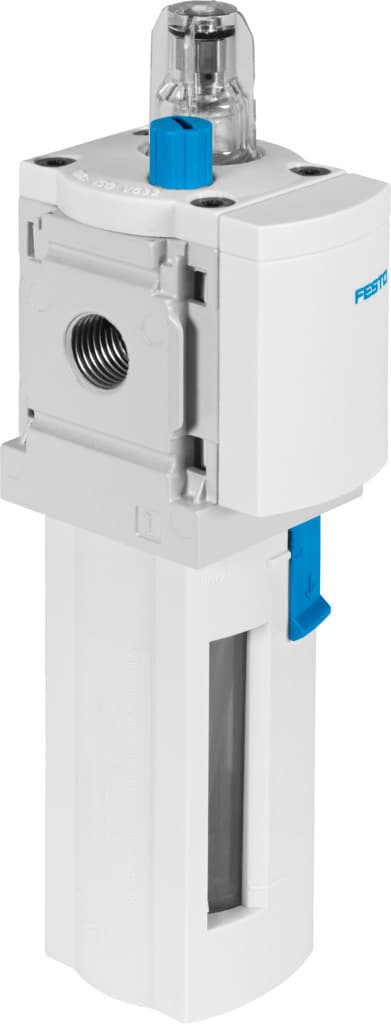

ms6-loe
Product ID:9069
Updated: 2026/4/3
Key Features
- 1Deliver precise and adjustable oil mist for optimal compressed air system lubrication. 2、Reduce wear on drive units under high loads to extend equipment lifespan. 3、Enable quick and easy oil top-up during operation to minimize downtime. 4、Provide proportional oil mist based on air flow for consistent lubrication. 5、Feature a robust design with a 30-1500 cm³ oil capacity for demanding environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Mounting position | Vertical +/- 5° | Structural design | Proportional standard oil mist lubricator |
| Bowl guard | Plastic bowl guard Integrated as metal bowl guard | Operating pressure | 1bar 16bar |
| Minimum flow rate for lubricator function | 50l/min | Standard nominal flow rate | 2500l/min 7200l/min |
| Certification | c UL us - Recognized (OL) | CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
| UKCA marking (see declaration of conformity) | acc. to UK EX instructions | Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) |
| Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) | ATEX category gas | II 2G |
| ATEX category for dust | II 2D | Type of ignition protection for gas | Ex h IIC T6 Gb X |
| Type of (ignition) protection for dust | Ex h IIIC T60°C Db X | Explosive ambient temperature | -10°C <= Ta <= +60°C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Temperature of medium | -10°C 60°C | Oil viscosity | ISO VG 32 |
| Ambient temperature | -10°C 60°C | Type of mounting | Optionally: Line installation With accessories |
| Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
| Manufacturer ID | 527674 |
Specifications may be subject to change without notice
