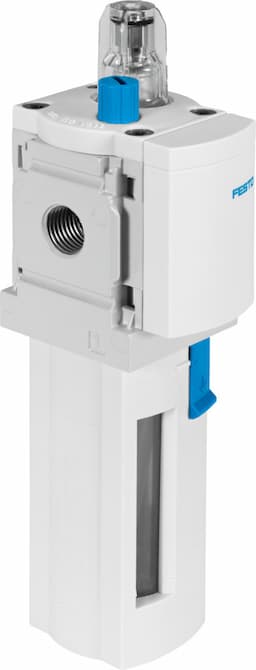

ms6-loe-1/4-u
Product ID:9248
Updated: 2026/4/3
Key Features
- 1Provide consistent lubrication with proportional mist control. 2、Integrate easily using two G1/4" female threaded ports. 3、Enhance safety via an integrated bowl guard design. 4、Mount vertically with ±5° angle flexibility for tight spaces. 5、Access 80 cm³ maximum oil capacity for varied applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Mounting position | Vertical +/- 5° | Structural design | Proportional standard oil mist lubricator |
| Max. oil capacity | 80cm3 | Bowl guard | Integrated as metal bowl guard |
| Symbol | 00991532 | Operating pressure | 1bar 16bar |
| Minimum flow rate for lubricator function | 50l/min | Standard nominal flow rate | 2500l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Temperature of medium | -10°C 60°C | Oil viscosity | ISO VG 32 |
| Ambient temperature | -10°C 60°C | Product weight | 810g |
| Type of mounting | Optionally: Line installation With accessories | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G? | Note on materials | RoHS-compliant |
| Housing material | Die-cast aluminum | Material of bowl | Wrought aluminum alloy |
| Manufacturer ID | 529781 |
Specifications may be subject to change without notice
