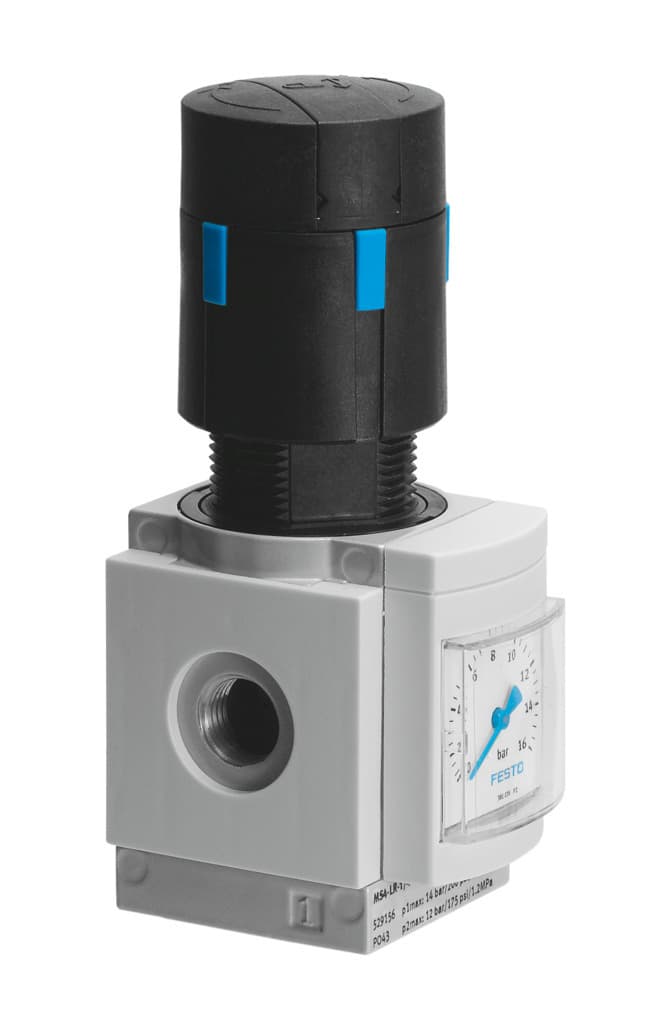

ms6-lrb
Product ID:9060
Updated: 2026/4/3
Key Features
- 1Ensure reliable air regulation for manifold assemblies. 2、Deliver a maximum output pressure of 7 bar. 3、Monitor pressure easily with the integrated gauge. 4、Secure the set pressure with a lockable rotary knob. 5、Resist corrosion with durable, industrial-grade materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Actuator lock | Rotary knob with detent Rotary knob with integrated lock can be closed with accessories | Mounting position | Any |
| Structural design | Pressure regulator with pressure gauge | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting |
| Pressure gauge | G1/4 prepared G1/8 prepared with pressure sensor with pressure gauge with pressure gauge in rotary knob | Operating pressure | 0.8bar 20bar |
| Pressure regulation range | 0.3bar 16bar | Max. pressure hysteresis | 0.25bar |
| Standard nominal flow rate | 600l/min 7300l/min | Certification | c UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) | UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
| Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) | Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) |
| ATEX category gas | II 2G | ATEX category for dust | II 2D |
| Type of ignition protection for gas | Ex h IIC T6 Gb X | Type of (ignition) protection for dust | Ex h IIIC T60°C Db X |
| Explosive ambient temperature | -10°C <= Ta <= +60°C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
| For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 730g |
| Type of mounting | Optionally: Front panel mounting Line installation With accessories | Note on materials | RoHS-compliant |
| Material of operator panel | PA POM | Seals material | NBR |
| Housing material | Die-cast aluminum | Diaphragm material | NBR |
| Manufacturer ID | 527665 |
Specifications may be subject to change without notice
