ms6-lrb-1/2-d7-a4-as
Product ID:9299
Updated: 2026/4/3
Key Features
- 1Handle a wide pressure range from 0.5 to 12 bar reliably. 2、Integrate easily with a standard 1/2 BSPP(G) port size. 3、Secure pressure settings with a lockable accessory feature. 4、Ensure consistent performance with Festo's proven reliability. 5、Minimize system downtime through precise air pressure control.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Any |
| Structural design | Directly controlled diaphragm regulator with continuous compressed air supply | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting |

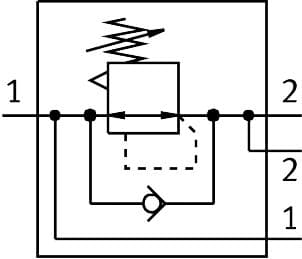

| Symbol | 00995310 | Pressure gauge | G1/4 prepared |
| Operating pressure | 0.8bar 20bar | Pressure regulation range | 0.5bar 12bar |
| Max. pressure hysteresis | 0.25bar | Standard nominal flow rate | 5500l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
| Product weight | 747g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
| Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
| Note on materials | RoHS-compliant | Material of operator panel | PA POM |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Diaphragm material | NBR | Manufacturer ID | 530332 |
Specifications may be subject to change without notice
