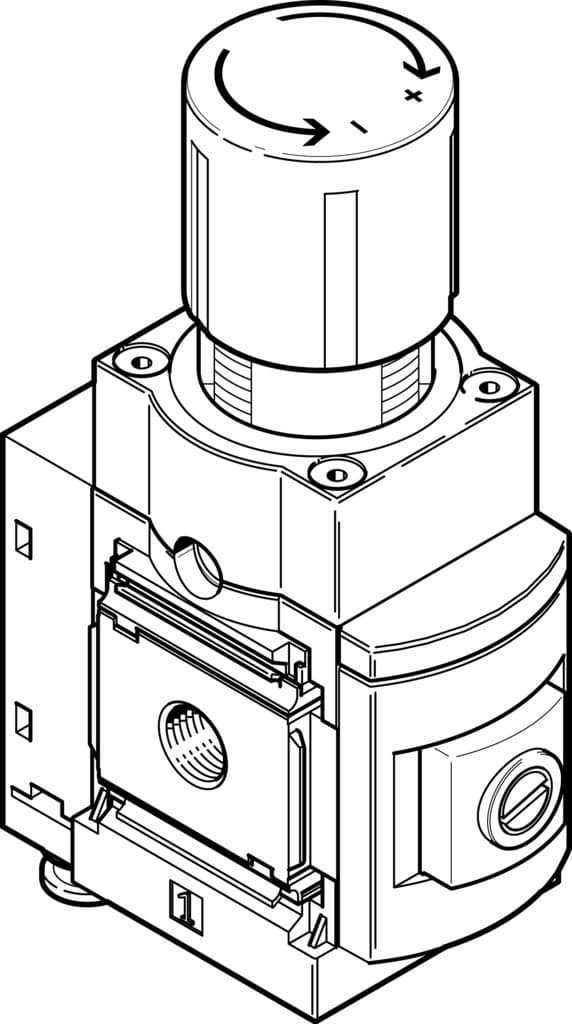

ms6-lrpb-1/2-d2-a8-bd
Product ID:9834
Updated: 2026/4/3
Key Features
- 1Ensure precise compressed air control with low hysteresis. 2、Meet ISO 1179-1 and ISO 228-1 standards for global compliance. 3、Secure setpoints using the lockable rotary knob feature. 4、Select models with or without secondary venting for flexibility. 5、Integrate optional pressure sensor with display for monitoring.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Actuator lock | Rotary knob with detent | Mounting position | Any |
| Structural design | Pilot-controlled precision diaphragm regulator | Controller function | Outlet pressure constant With secondary exhausting |
| Symbol | 00991973 | Pressure gauge | G1/8 prepared |
| Operating pressure | 1bar 14bar | Pressure regulation range | 0.05bar 0.7bar |
| Max. pressure hysteresis | 0.02bar | Flow rate of secondary venting | 220l/min |
| Standard nominal flow rate | 1600l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
| Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
| Product weight | 850g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
| Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
| Pneumatic connection 3 | G1/4 | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Aluminum |
| Manufacturer ID | 534865 |
Specifications may be subject to change without notice
