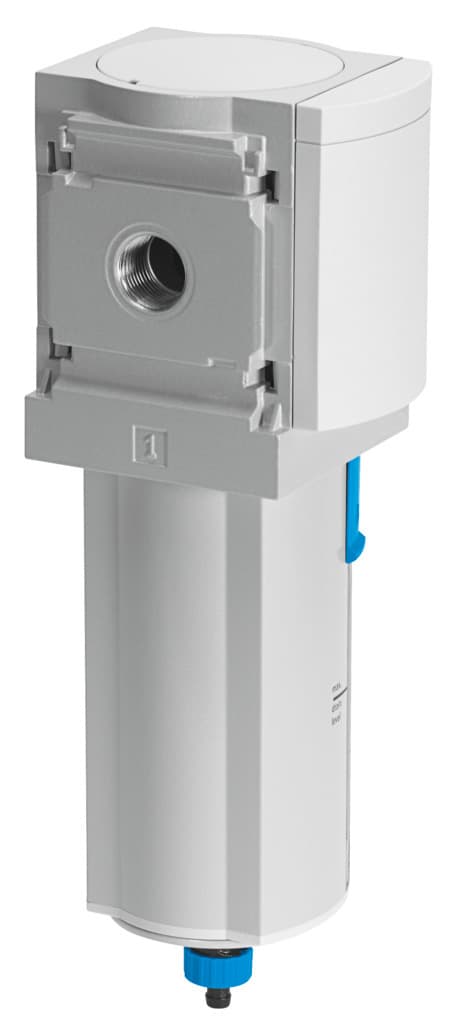

ms6-lws
Product ID:13153
Updated: 2026/4/3
Key Features
- 1Achieve 99% condensate separation with a centrifugal design. 2、Install flexibly using G1/4, G3/8, or G1/2 thread types. 3、Enable easy maintenance via a fully automatic condensate drain. 4、Combine modularly with other service unit components. 5、Ensure durability with die-cast aluminum housing.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Mounting position | Vertical +/- 5° | Condensate drain | Fully automatic |
| Structural design | Centrifugal separator | Max. condensate volume | 38ml |
| Bowl guard | Integrated as metal bowl guard | Degree of condensate separation | 99% |
| Symbol | 00992244 | Operating pressure | 0.8bar 16bar |
| Standard nominal flow rate | 2400l/min 3800l/min | Certification | c UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) | UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
| Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) | Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) |
| ATEX category gas | II 2G | ATEX category for dust | II 2D |
| Type of ignition protection for gas | Ex h IIC T6 Gb X | Type of (ignition) protection for dust | Ex h IIIC T60°C Db X |
| Explosive ambient temperature | -10°C <= Ta <= +60°C | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] Compressed air as per ISO 8573-1:2010 [7:-:-] Inert gas |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
| Degree of protection | IP65 as per IEC 60529 | Ambient temperature | -10°C 60°C |
| Type of mounting | Optionally: Line installation With accessories | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Material of bowl | Wrought aluminum alloy | Inspection window material | PA |
| Manufacturer ID | 564858 |
Specifications may be subject to change without notice
