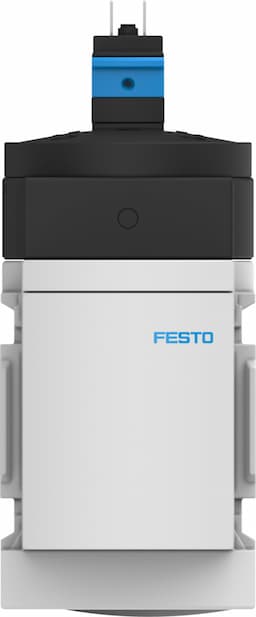

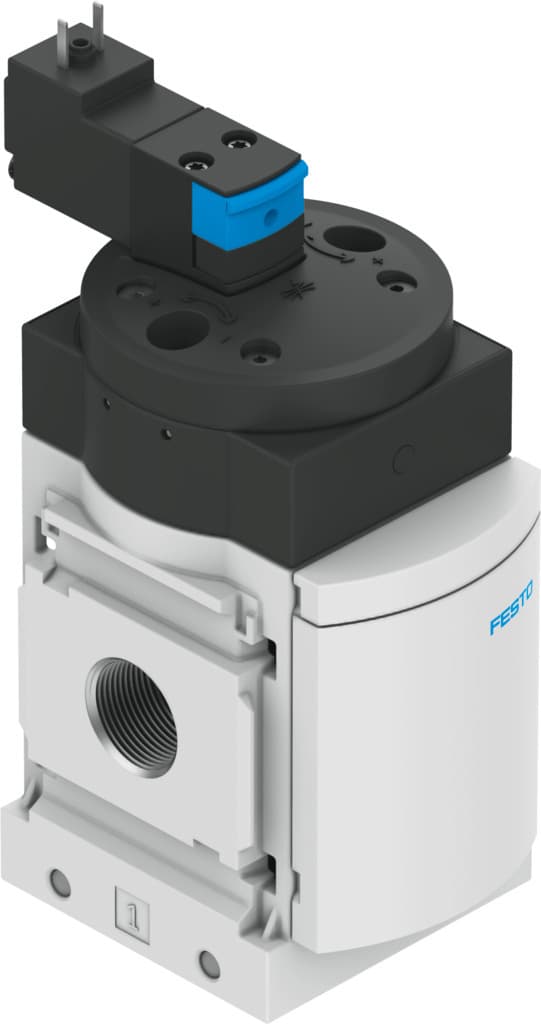

ms6n-de
Product ID:9078
Updated: 2026/4/3
Key Features
- 1Ensure smooth and controlled pressure build-up to prevent sudden movements. 2、Select from 24VDC, 110VAC, or 230VAC for flexible actuation. 3、Adjust pressure build-up time from 0.05 to 5 seconds. 4、Rely on die-cast aluminum housing for high corrosion resistance. 5、Utilize manual override options for easy maintenance during power loss.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Actuation type | Electrical | Mounting position | Any |
| Manual override | Detenting Non-detenting | Structural design | Piston seat |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |
| Valve function | 2/2 | Pressure gauge | with pressure sensor |
| Switching position indication | with accessories | Operating pressure | 4bar 18bar |
| Standard nominal flow rate | 2600l/min 6450l/min | Duty cycle | 100% |
| Certification | c UL - Recognized (OL) c UL us - Recognized (OL) | KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
| Degree of protection | IP65 | Ambient temperature | -10°C 60°C |
| Product weight | 680g | Electrical connection | Form C Plug as per DIN EN 175301-803 Rectangular design |
| Signal status display | With accessories | Type of mounting | Optionally: Line installation With accessories |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 527687 |
Specifications may be subject to change without notice
