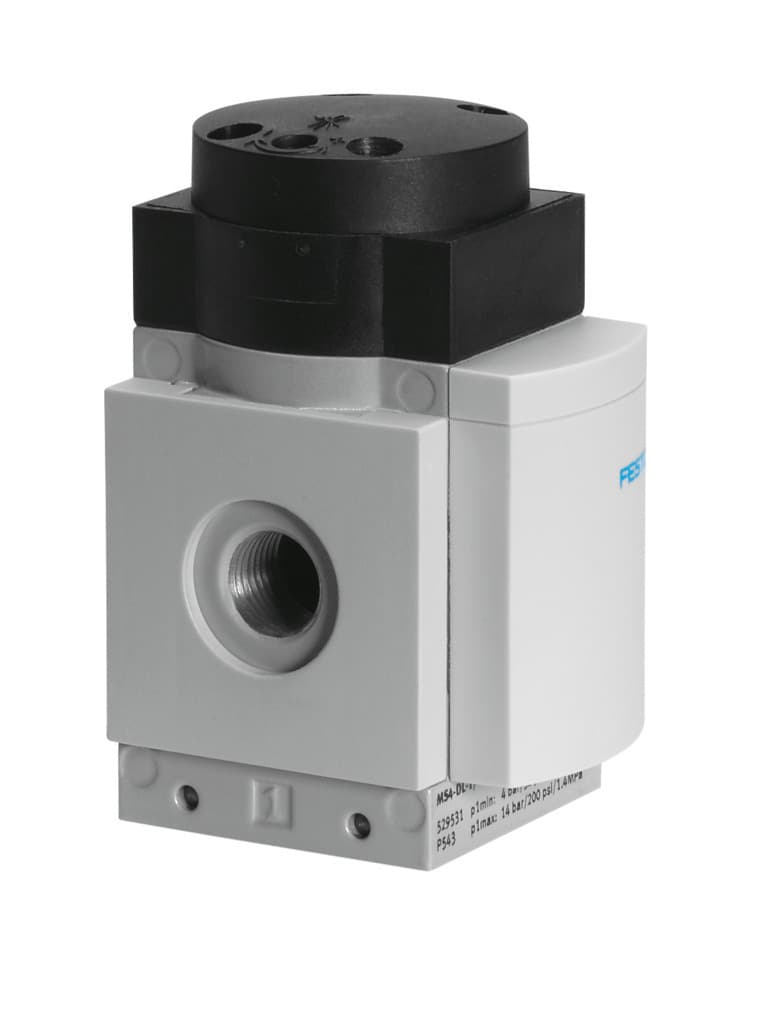

ms6n-dl
Product ID:9076
Updated: 2026/4/3
Key Features
- 1Achieve precise pneumatic control with adjustable flow rates. 2、Minimize leakage and maintenance costs via advanced sealing. 3、Integrate easily into existing industrial systems for seamless upgrades. 4、Withstand harsh environments with robust, corrosion-resistant construction. 5、Optimize space and handling with a compact, lightweight design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Exhaust air function | With flow control option | Actuation type | Pneumatic |
| Mounting position | Any | Manual override | None |
| Structural design | Piston seat | Reset method | Mechanical spring |
| Type of control | Direct | Pilot air supply port | External |
| Flow direction | Non-reversible | Valve function | 2/2 |
| Pressure gauge | with pressure sensor | Operating pressure | 4bar 18bar |
| Standard nominal flow rate | 2600l/min 6450l/min | Certification | c UL us - Recognized (OL) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 650g |
| Type of mounting | Optionally: Line installation With accessories | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 527685 |
Specifications may be subject to change without notice
