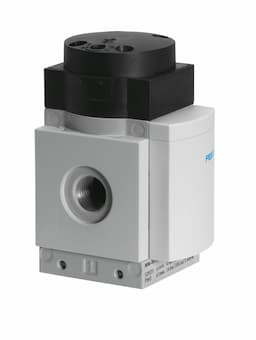

ms6n-dl-1/2
Product ID:9502
Updated: 2026/4/3
Key Features
- 1Operate with versatile solenoid coil voltage ranges (24 V DC, 110/230 V AC). 2、Reposition the solenoid actuator by 180° for flexible installation. 3、Monitor pressure optionally with a sensor and display unit. 4、Achieve optimal flow up to 307.1 scfm in main direction. 5、Withstand wide ambient temperatures from 14°F to 140°F.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Exhaust air function | With flow control option | Actuation type | Pneumatic |
| Mounting position | Any | Manual override | None |
| Structural design | Piston seat | Reset method | Mechanical spring |
| Type of control | Direct | Pilot air supply port | External |
| Flow direction | Non-reversible | Symbol | 00991513 |
| Valve function | 2/2 | Operating pressure | 4bar 18bar |
| b-value | 0.39 | C value | 28.97l/sbar |
| Standard nominal flow rate | 6450l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | For use in the food industry | See supplementary material information |
| Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
| Product weight | 650g | Type of mounting | Optionally: Line installation With accessories |
| Pneumatic connection 1 | 1/2 NPT | Pneumatic connection 2 | 1/2 NPT |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 532024 |
Specifications may be subject to change without notice
