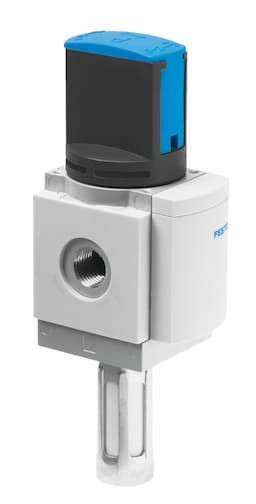

ms6n-em1-1/4-s
Product ID:10653
Updated: 2026/7/4
Key Features
- 1Control pneumatic pressurization and venting manually with this 3/2-way on-off valve.
- 2Reduce operational noise significantly using the integrated silencer.
- 3Ensure system integrity with non-reversible flow direction to prevent backflow.
- 4Operate reliably in ambient temperatures from 14°F to 140°F.
- 5Resist corrosion in harsh environments with Festo standard 940 070 materials.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Rotary gate valve | Actuation type | Manual |
| Exhaust air function | Without flow control option | Type of control | Direct |
| Symbol | 00991670 | Valve function | 3/2, bistable |
| Operating pressure | 0bar 18bar | C value | 10.7l/sbar |
| b-value | 0.56 | Standard nominal flow rate | 3000l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
| Flow direction | Non-reversible | Product weight | 655g |
| Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
| Pneumatic connection 3 | Pneumatic muffler integrated Not ducted | Seals material | TPE-U(PU) |
| Housing material | Die-cast aluminum | Manufacturer ID | 541294 |
Specifications may be subject to change without notice
