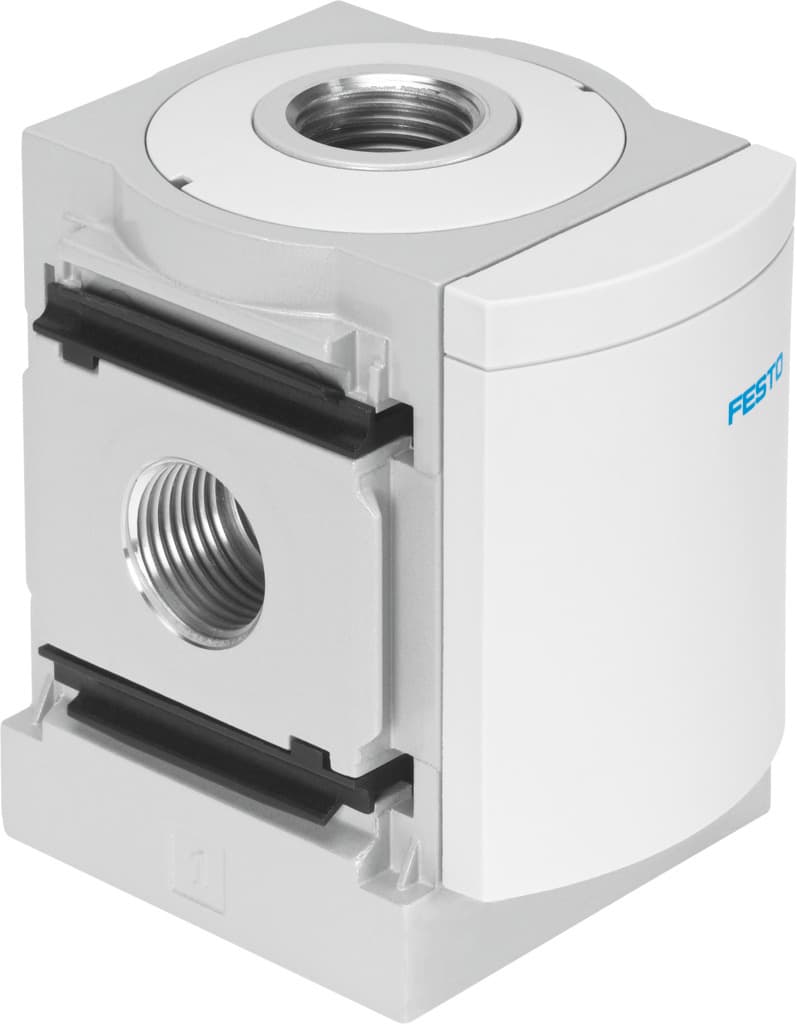

ms6n-frm
Product ID:9072
Updated: 2026/7/4
Key Features
- 1Ensure reliable compressed air distribution with flow rates up to 14,600 L/min.
- 2Prevent return flow with an optional integrated non-return function.
- 3Select from various configurations for main and outlet flow requirements.
- 4Deploy indoors with moderate corrosion resistance (CRC 2) for durability.
- 5Integrate easily into modular systems with other Festo automation products.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Structural design | Branching module |
| Symbol | 00991510 | Pressure gauge | G1/4 prepared G1/8 prepared with pressure sensor with pressure gauge |
| Operating pressure | 0bar 20bar | Standard nominal flow rate in main flow direction 1 -> 2 | 3200l/min 14700l/min |
| Standard nominal flow rate outlet at top | 2700l/min 6000l/min | Standard nominal flow rate outlet down | 2800l/min 6400l/min |
| Operating voltage range AC | 0V 250V | DC operating voltage range | 0V 125V |
| Certification | c UL us - Recognized (OL) | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
| For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 458g |
| Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
| Manufacturer ID | 527677 |
Specifications may be subject to change without notice
