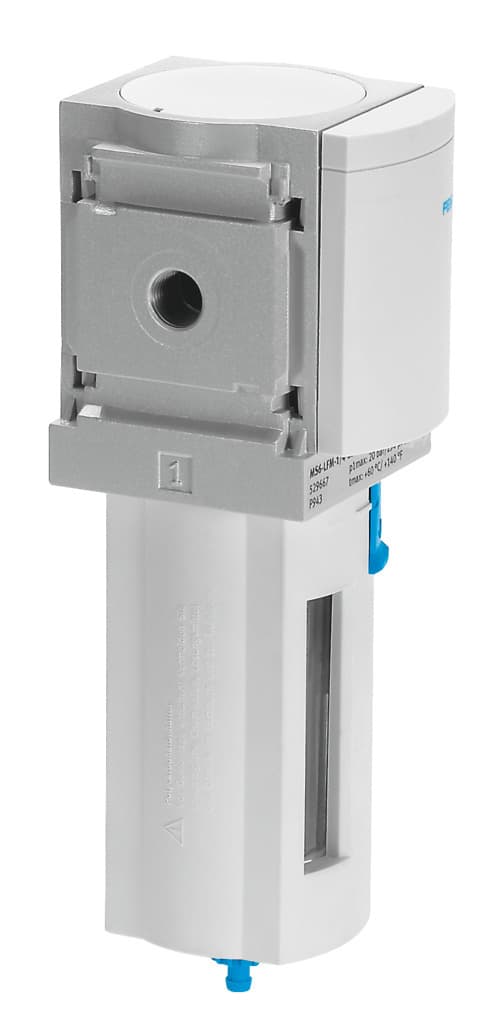

ms6n-lfm
Product ID:9066
Updated: 2026/7/4
Key Features
- 1Achieve exceptional 0.01 µm air purity for reliable compressed air.
- 2Utilize a fully automatic condensate drain to reduce downtime.
- 3Ensure long-lasting performance with durable die-cast aluminum construction.
- 4Install vertically with ±5° tolerance for versatile system integration.
- 5Meet stringent ISO 8573-1:2010 standards for industrial cleanliness.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Series | MS | Size | 6 |
| Structural design | Fiber filter | Grade of filtration | 0.01μm 1μm |
| Condensate drain | Fully automatic Manual, non-detenting Manually rotating Semi-automatic | Operating pressure | 0bar 20bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] Inert gas | Air quality class at the output | Compressed air as per ISO?8573-1:2010 [3:4:2] Compressed air as per ISO?8573-1:2010 [5:4:3] |
| Bowl guard | Plastic bowl guard Integrated as metal bowl guard | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | For use in the food industry | See supplementary material information |
| Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
| Differential pressure display | Visual display With pressure sensor | Certification | c UL us - Recognized (OL) |
| Type of mounting | Optionally: Line installation With accessories | Mounting position | Vertical +/- 5° |
| Housing material | Die-cast aluminum | Compressed air filter material | Borosilicate fiber |
| Seals material | NBR | Note on materials | RoHS-compliant |
| Manufacturer ID | 527671 |
Specifications may be subject to change without notice
