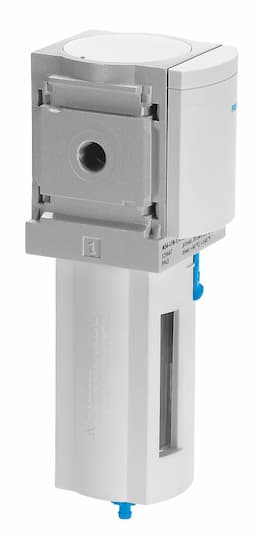

ms6n-lfm-1/4-brv
Product ID:9462
Updated: 2026/4/3
Key Features
- 1Achieve 1µm filtration for superior air purity and reliability. 2、Integrate easily with standard NPT 1/4 pneumatic connections. 3、Operate reliably from -10°C to 60°C in diverse conditions. 4、Ensure clean air preparation for compressed air and inert gases. 5、Meet stringent hygiene standards for food industry applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Series | MS | Size | 6 |
| Structural design | Fiber filter | Grade of filtration | 1μm |
| Condensate drain | Fully automatic Manual, non-detenting | Symbol | 00991520 |
| Operating pressure | 2bar 12bar | Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] Inert gas |
| Air quality class at the output | Compressed air as per ISO?8573-1:2010 [5:4:3] | Max. standard flow rate for air quality class | 950l/min |
| Min. standard flow rate for air quality class | 140l/min | Filter efficiency | 99.99% |
| Max. condensate volume | 38ml | Bowl guard | Plastic bowl guard |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Storage temperature | -10°C 60°C |
| Filter efficiency, fine particles | 99% | Residual oil content | 0.5mg/m3 |
| Filter efficiency, oil aerosol | 90% | Type of mounting | Optionally: Line installation With accessories |
| Mounting position | Vertical +/- 5° | Pneumatic connection 1 | 1/4 NPT |
| Pneumatic connection 2 | 1/4 NPT | Housing material | Die-cast aluminum |
| Compressed air filter material | Borosilicate fiber | Material of bowl | PC |
| Seals material | NBR | Note on materials | RoHS-compliant |
| Product weight | 600g | Manufacturer ID | 531854 |
Specifications may be subject to change without notice
