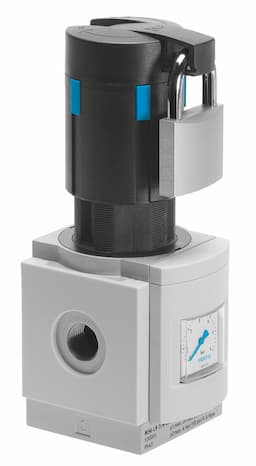

ms6n-lr-3/8-d7-as
Product ID:9391
Updated: 2026/7/4
Key Features
- 1Ensure precise pressure control with low hysteresis for consistent performance.
- 2Achieve 20 million cycles B10 life for extended operational reliability.
- 3Withstand harsh conditions with certified vibration and shock resistance.
- 4Simplify installation using compact 3/8" NPT female threaded ports.
- 5Handle high flow rates up to 4500 L/min for demanding applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Any |
| Structural design | Pressure regulator with pressure gauge | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting |
| Symbol | 00991558 | Pressure gauge | with pressure gauge |
| Operating pressure | 0.8bar 20bar | Pressure regulation range | 0.5bar 12bar |
| Max. pressure hysteresis | 0.25bar | Standard nominal flow rate | 4500l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
| Product weight | 730g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
| Pneumatic connection 1 | 3/8 NPT | Pneumatic connection 2 | 3/8 NPT |
| Note on materials | RoHS-compliant | Material of operator panel | PA POM |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Diaphragm material | NBR | Separating disc material | POM |
| Manufacturer ID | 531456 |
Specifications may be subject to change without notice
