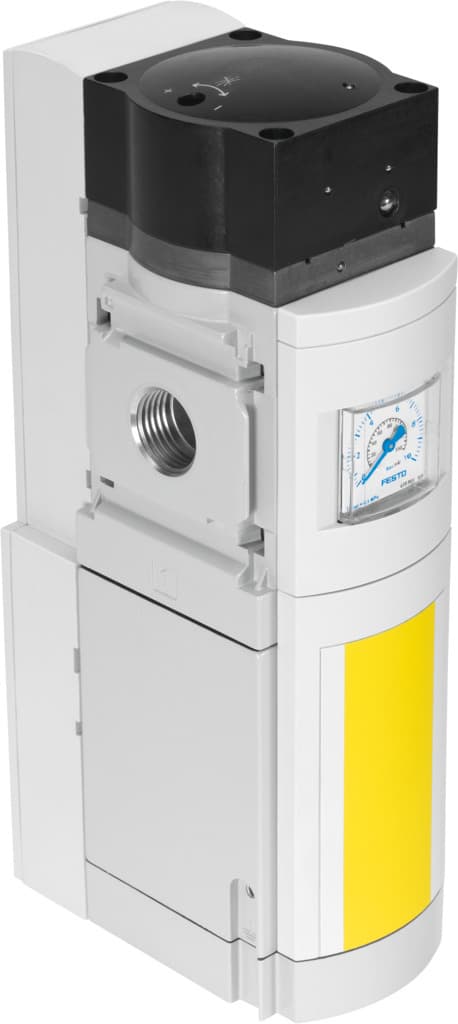

ms6(n)-sv
Product ID:11636
Updated: 2026/4/3
Key Features
- 1Ensure safe venting and pressure building in pneumatic systems. 2、Adjust pressure switching points and flow rates for precise control. 3、Withstand shock and vibration in demanding industrial environments. 4、Secure enable signals via a multi-pin plug socket for safety. 5、Meet EN ISO 13849-1 standards for guaranteed performance level e.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Series | MS | Size | 6 |
| Width dimension | 62mm | Safety function | Exhausting Prevention of unexpected start-up (pressurization) |
| Note on forced dynamization | Switching frequency at least once a month | Structural design | Piston gate valve Piston seat |
| Actuation type | Electrical | Pilot air supply port | Internal |
| Sealing principle | Soft | Exhaust air function | Without flow control option |
| Manual override | None At pilot control air solenoid valve: non-detenting, at soft start/quick exhaust valve: detenting, self-resetting At pilot control air solenoid valve: non-detenting, detenting, at soft start/quick exhaust valve: detenting, self-resetting | Reset method | Mechanical spring |
| Type of control | Pilot-controlled | Valve function | 3/2, closed, monostable Pressure build-up function |
| Operating pressure | 3bar 10bar | Pressure gauge | G1/4 prepared G1/8 prepared Red-green scale with pressure sensor with pressure sensor with LCD display with pressure sensor with switching indicator with pressure gauge |
| Standard nominal flow rate | 4300l/min 5700l/min | Duty cycle | 100% |
| Signal status display | LED Floating contact Switching outputs Via AS-i | Coil characteristics | 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA 230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA 24 V DC: 1.5 W 24 V DC: 1.8 W |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 With plug socket |
| Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
| Storage temperature | -10°C 60°C | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Certification | RCM compliance mark c UL us - Recognized (OL) |
| KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive as per EU machinery directive As per EU low voltage directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK instructions for machines To UK RoHS instructions | Certificate issuing authority | IFA 1001180 Intertek UK-MCR-0086 German Technical Control Board (TüV) 44 799 12 556236 000 |
| For use in the food industry | See supplementary material information | Type of mounting | Optionally: Line installation With accessories |
| Mounting position | Any | Housing material | Die-cast aluminum |
| Seals material | NBR | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 548713 |
Specifications may be subject to change without notice
