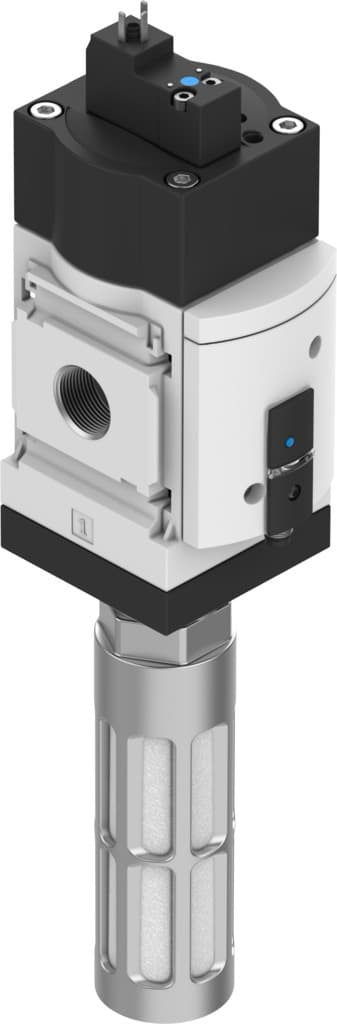

ms6-sv-1/2-c-10v24-s-ad7
Product ID:298
Updated: 2026/4/3
Key Features
- 1Ensure precise control with robust construction for long-lasting performance. 2、Simplify communication using standardized IO-Link technology for enhanced efficiency. 3、Integrate easily into complex systems as part of Festo's comprehensive automation range. 4、Minimize material needs with a compact design and versatile configuration options. 5、Access extensive documentation and training resources for seamless operation support.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Series | MS | Size | 6 |
| Width dimension | 62mm | Safety function | Exhausting Prevention of unexpected start-up (pressurization) |
| Performance Level (PL) | Exhaust/category 1, performance level c Avoidance of unexpected start-up (pressurization)/category 1, performance level c | Note on forced dynamization | Switching frequency at least once a month |
| Structural design | Piston gate valve | Lap | Overlap |
| Actuation type | Electrical | Pilot air supply port | Internal |
| Sealing principle | Soft | Exhaust air function | Without flow control option |
| Manual override | At pilot control air solenoid valve: non-detenting, at soft start/quick exhaust valve: detenting, self-resetting | Reset method | Mechanical spring |
| Type of control | Pilot-controlled | Symbol | 00995813 |
| Valve function | 3/2, closed, monostable Pressure build-up function | Operating pressure | 3bar 10bar |
| Pressure gauge | with pressure sensor with switching indicator | C value | 23.2l/sbar |
| b-value | 0.4 | Standard nominal flow rate | 5700l/min |
| Standard flow rate exhaust 6-> 0 bar | 7600l/min | Switching time off | 65ms |
| On switching time | 370ms | Duty cycle | 100% |
| Coil characteristics | 24 V DC: 1.8 W | Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 With plug socket |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| CE marking (see declaration of conformity) | As per EU EMC directive as per EU machinery directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK instructions for machines To UK RoHS instructions |
| For use in the food industry | See supplementary material information | Type of mounting | Optionally: Line installation With accessories |
| Mounting position | Any | Product weight | 1006g |
| Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
| Pneumatic connection 3 | G3/4 | Electrical connection | 2-pin Form C Plug as per EN 175301-803 |
| Housing material | Die-cast aluminum | Seals material | NBR |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 8172785 |
Specifications may be subject to change without notice
