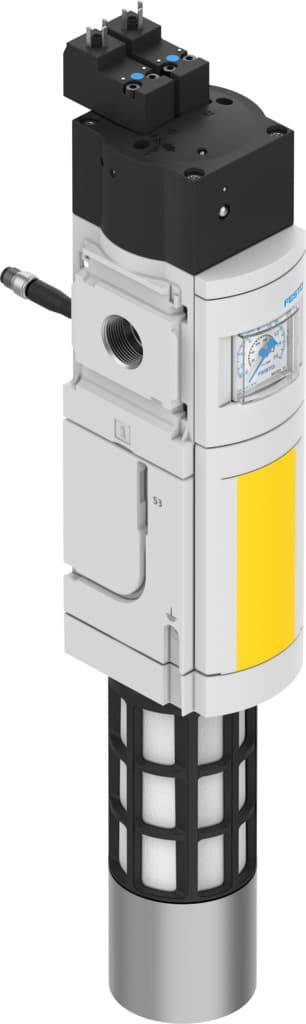

ms6-sv-1/2-d-10v24-2m8-so-ag
Product ID:15920
Updated: 2026/4/3
Key Features
- 1Ensure safety with SIL 3 compliance for high-risk applications. 2、Prevent unexpected machine start-ups and hazardous pressurization. 3、Achieve up to 0.9 million cycles for extended service life. 4、Withstand severe vibration and shock in demanding industrial environments. 5、Meet EU EMC, RoHS, and Machinery Directives for full compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Series | MS | Size | 6 |
| Width dimension | 62mm | Safety function | Exhausting Prevention of unexpected start-up (pressurization) |
| Safety integrity level (SIL) | Exhaust/SIL 3 Avoidance of unexpected start-up (pressurization)/SIL 3 | Performance Level (PL) | Exhaust/category 3, performance level d Avoidance of unexpected start-up (pressurization)/category 3, performance level d |
| Note on forced dynamization | Switching frequency at least once a month | Structural design | Piston seat |
| Lap | Underlap | Actuation type | Electrical |
| Pilot air supply port | Internal | Sealing principle | Soft |
| Exhaust air function | Without flow control option | Position sensing principle | Piston magnet principle |
| Conforms to standard | DIN EN ISO 13849-1 DIN EN ISO 13849-2 | Manual override | None |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |
| Symbol | 00995704 | Valve function | 3/2, closed, monostable Pressure build-up function |
| Operating pressure | 3.5bar 10bar | Pressure gauge | with pressure gauge |
| C value | 19.3l/sbar | b-value | 0.21 |
| Standard nominal flow rate | 4300l/min | Standard flow rate exhaust 6-> 0 bar | 9000l/min |
| Max. switching frequency | 0.5Hz | Switching time off | 40ms |
| On switching time | 130ms | Duty cycle | 100% |
| Signal status display | LED Switching outputs | Coil characteristics | 24 V DC: 1.8 W |
| Nominal operating voltage DC | 24V | Permissible voltage fluctuations | +10 %/-15 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Noise level | 75dB(A) |
| Degree of protection | IP65 With plug socket | Temperature of medium | -10°C 50°C |
| Ambient temperature | -10°C 50°C | Storage temperature | -10°C 50°C |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Certification | RCM compliance mark | KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directive as per EU machinery directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK instructions for machines To UK RoHS instructions |
| Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
| Product weight | 2110g | Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 | Pneumatic connection 3 | G1 |
| Electrical connection | 2-pin 2x plugs Form C as per EN 175301-803 | Electrical connection, proximity sensor | 2x cables with plugs 3-pin M8 Rotatable thread |
| Housing material | Die-cast aluminum | Seals material | NBR |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 8038490 |
Specifications may be subject to change without notice
