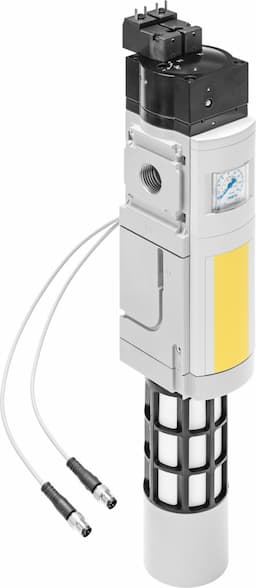

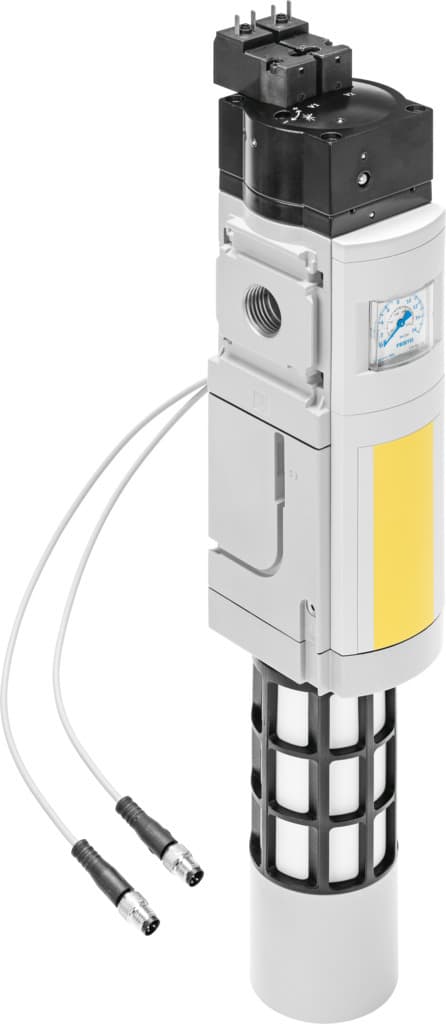

ms6-sv-1/2-d-10v24p-2m12-so-ag
Product ID:15921
Updated: 2026/7/4
Key Features
- 1Ensure SIL 3 safety to prevent unexpected system start-up.
- 2Prevent costly downtime with 0.9 million cycle service life.
- 3Meet EU EMC, RoHS, and Machinery Directive compliance.
- 4Utilize robust piston seat and soft sealing for reliability.
- 5Benefit from quick exhaust for safe system depressurization.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Series | MS | Size | 6 |
| Width dimension | 62mm | Safety function | Exhausting Prevention of unexpected start-up (pressurization) |
| Safety integrity level (SIL) | Exhaust/SIL 3 Avoidance of unexpected start-up (pressurization)/SIL 3 | Performance Level (PL) | Exhaust/category 3, performance level d Avoidance of unexpected start-up (pressurization)/category 3, performance level d |
| Note on forced dynamization | Switching frequency at least once a month | Structural design | Piston seat |
| Lap | Underlap | Actuation type | Electrical |
| Pilot air supply port | Internal | Sealing principle | Soft |
| Exhaust air function | Without flow control option | Position sensing principle | Piston magnet principle |
| Conforms to standard | DIN EN ISO 13849-1 DIN EN ISO 13849-2 | Manual override | None |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |
| Symbol | 00995704 | Valve function | 3/2, closed, monostable Pressure build-up function |
| Operating pressure | 3.5bar 10bar | Pressure gauge | with pressure gauge |
| C value | 19.3l/sbar | b-value | 0.21 |
| Standard nominal flow rate | 4300l/min | Standard flow rate exhaust 6-> 0 bar | 9000l/min |
| Max. switching frequency | 0.5Hz | Switching time off | 40ms |
| On switching time | 130ms | Duty cycle | 100% |
| Signal status display | LED Switching outputs | Coil characteristics | 24 V DC: 1.8 W |
| Nominal operating voltage DC | 24V | Permissible voltage fluctuations | +10 %/-15 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Noise level | 75dB(A) |
| Degree of protection | IP65 With plug socket | Temperature of medium | -10°C 50°C |
| Ambient temperature | -10°C 50°C | Storage temperature | -10°C 50°C |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Certification | RCM compliance mark | KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directive as per EU machinery directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK instructions for machines To UK RoHS instructions |
| Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
| Product weight | 2110g | Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 | Pneumatic connection 3 | G1 |
| Electrical connection | 2x M12 as per IEC 61076-2-101 | Electrical connection, proximity sensor | 2x cables with plugs 3-pin M12 Rotatable thread |
| Housing material | Die-cast aluminum | Seals material | NBR |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 8038491 |
Specifications may be subject to change without notice
