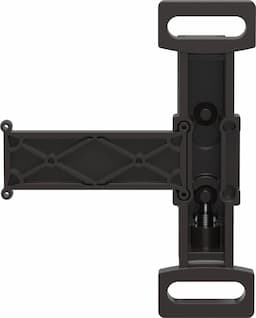

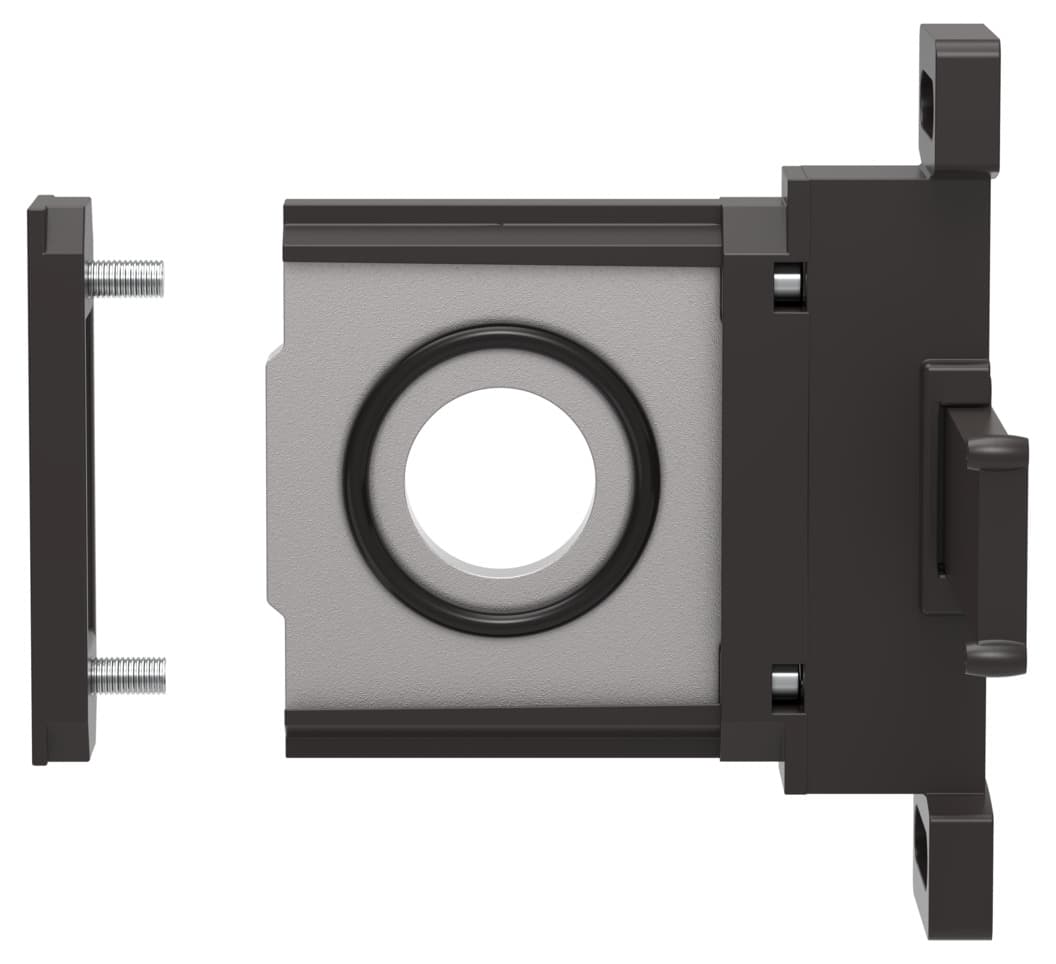

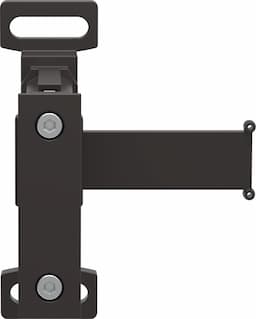

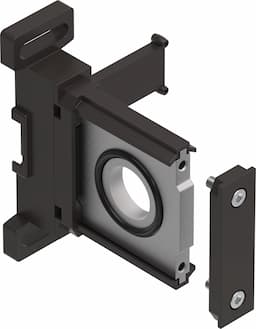

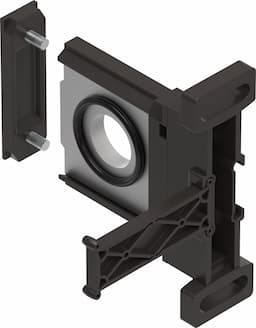

ms6-wpm-d
Product ID:8944
Updated: 2026/4/3
Key Features
- 1Secure wall mounting for pneumatic modules with the MS6-WPM-D. 2、Withstand moderate corrosion stress (class 2) in industrial settings. 3、Operate reliably in a medium temperature range from -10°C to 60°C. 4、Ensure durability using die-cast aluminum construction and NBR seals. 5、Meet environmental standards with this RoHS-compliant mounting bracket.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Product weight | 144g |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Module connector material | Die-cast aluminum | Material of screws | Steel |
| Bracket material | Die-cast aluminum | Manufacturer ID | 526073 |
Specifications may be subject to change without notice
