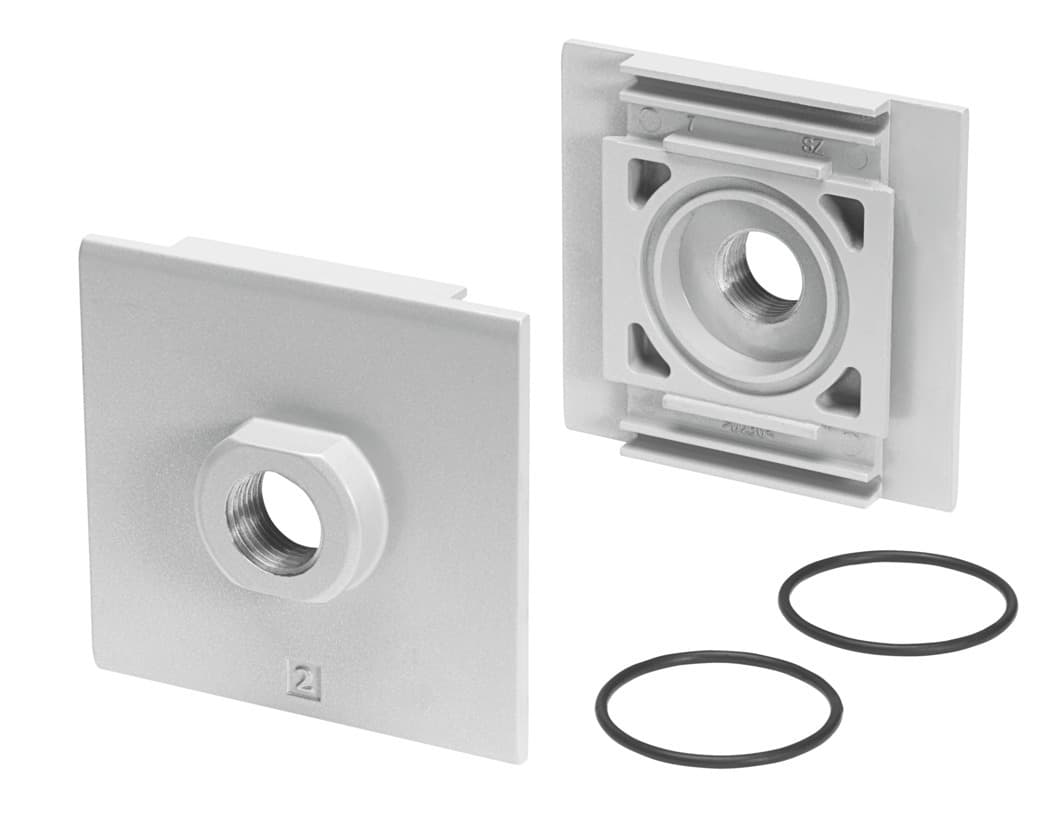

ms9-agg
Product ID:11972
Updated: 2026/4/3
Key Features
- 1Secure connections with a reliable G thread design. 2、Withstand moderate corrosion stress with CRC=2 classification. 3、Operate reliably in temperatures from -10 to 60 °C. 4、Meet high safety standards with LABS (PWIS) conformity. 5、Integrate easily into 9mm applications at 400 grams.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 9 | Series | MS |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Product weight | 400g |
| Pneumatic connection 1 | G1 1/4 | Pneumatic connection 2 | G1 1/4 |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Seals material | NBR | Hollow bolt material | Die-cast aluminum |
| Manufacturer ID | 552957 |
Specifications may be subject to change without notice
