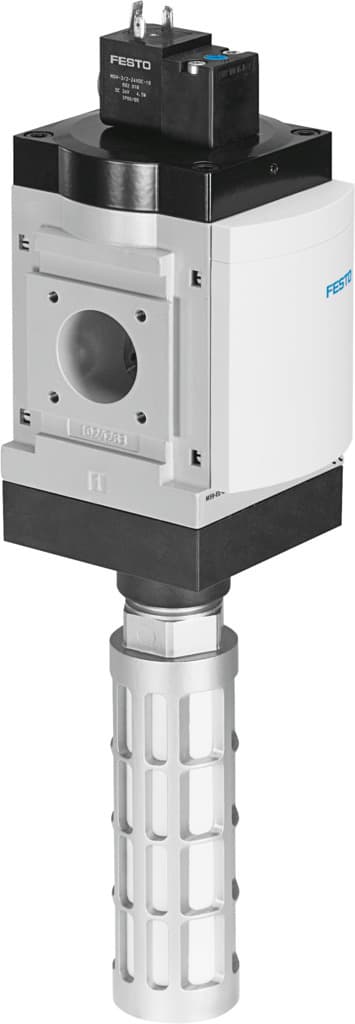

ms9-ee
Product ID:13052
Updated: 2026/7/4
Key Features
- 1Achieve high flow rates with minimal space requirements.
- 2Suit both standard applications and specific high-quality solutions.
- 3Combine function modules freely for customizable setups.
- 4Ensure reliable operation with integrated sensors and safety.
- 5Meet diverse standards with UL and ATEX certifications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Series | MS | Size | 9 |
| Width dimension | 90mm | Structural design | Piston gate valve |
| Actuation type | Electrical | Sealing principle | Soft |
| Exhaust air function | Without flow control option | Manual override | Detenting Non-detenting |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |
| Valve function | 2/2, closed, monostable 3/2, closed, monostable | Pressure gauge | G1/4 prepared G1/8 prepared Red-green scale with pressure sensor with pressure gauge with switch indicator |
| Operating pressure | 3.5bar 16bar | Lap | Overlap |
| Standard nominal flow rate | 8000l/min 18000l/min | Standard nominal flow rate 2-3 | 13200l/min 14900l/min |
| Duty cycle | 100% | Coil characteristics | 110 V AC: 50 Hz, initial power 11.5 VA, holding power 8.9 VA 110 V AC: 60 Hz, initial power 9.5 VA, holding power 6.2 VA 230 V AC: 50 Hz, initial power 11.5 VA, holding power 9.1 VA 230 V AC: 60 Hz, initial power 9.5 VA, holding power 6.4 VA |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
| Degree of protection | IP65 | Ambient temperature | -10°C 60°C |
| Certification | c UL us - Recognized (OL) | CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
| UKCA marking (see declaration of conformity) | acc. to UK EX instructions To UK instructions for electrical equipment | Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) |
| Explosion prevention and protection | Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) | ATEX category gas | II 3G |
| ATEX category for dust | II 3D | Type of ignition protection for gas | Ex nA IIC T5 X Gc |
| Type of (ignition) protection for dust | Ex tc IIIC T85°C X Dc IP65 | Explosive ambient temperature | -10°C <= Ta <= +50°C |
| Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
| Electrical connection | Form A Plug as per DIN EN 175301-803 Rectangular design | Piston slide material | POM |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 562177 |
Specifications may be subject to change without notice
