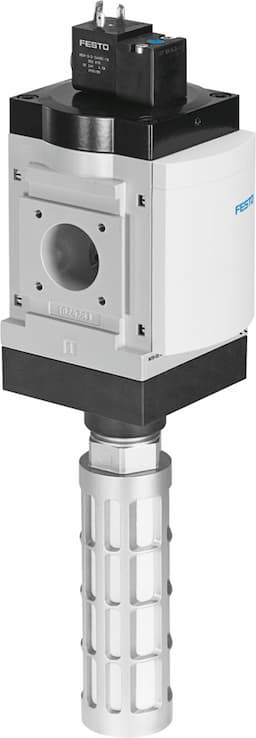

ms9-ee-g-v24-s-vs
Product ID:13083
Updated: 2026/4/3
Key Features
- 1Ensure precise electrical on/off control with minimal effort. 2、Reduce wear using a reliable soft sealing principle. 3、Handle high-demand applications with 18,000 L/min flow. 4、Minimize operational noise via a built-in silencer. 5、Enable easy manual override with mechanical spring reset.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Series | MS | Size | 9 |
| Width dimension | 90mm | Structural design | Piston gate valve |
| Actuation type | Electrical | Sealing principle | Soft |
| Exhaust air function | Without flow control option | Manual override | Detenting Non-detenting |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |
| Symbol | 00991008 | Valve function | 3/2, closed, monostable |
| Operating pressure | 3.5bar 16bar | Lap | Overlap |
| Standard nominal flow rate | 18000l/min | Standard nominal flow rate 2-3 | 14100l/min |
| Duty cycle | 100% | Coil characteristics | 24 V DC: 4.5 W |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
| Noise level | 93dB(A) | Degree of protection | IP65 |
| Ambient temperature | -10°C 60°C | Type of mounting | Optionally: Line installation With accessories |
| Mounting position | Any | Product weight | 2300g |
| Pneumatic connection 3 | G1 | Electrical connection | Form A Plug as per DIN EN 175301-803 Rectangular design |
| Piston slide material | POM | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 562940 |
Specifications may be subject to change without notice
