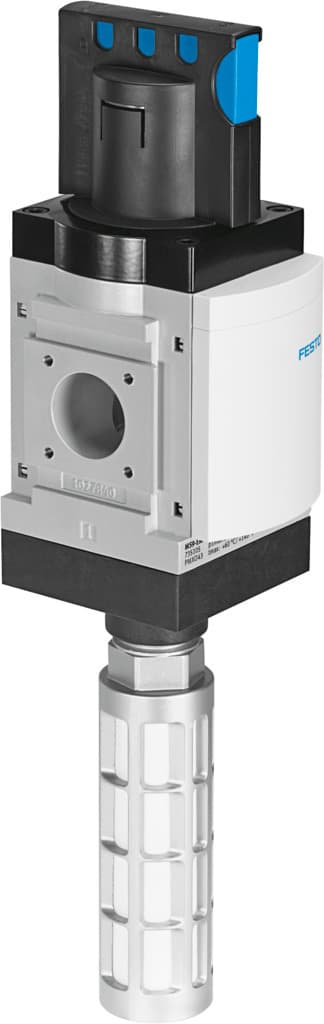

ms9-em
Product ID:13053
Updated: 2026/4/3
Key Features
- 1Operate easily with a manual rotary knob and detent. 2、Reduce noise using the soft exhaust-air function for smooth operation. 3、Control compressed air flow precisely with 2/2 double solenoid valve function. 4、Ensure durability with die-cast aluminum housing and NBR seals. 5、Meet international safety standards with ATEX and CE certification.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Series | MS | Size | 9 |
| Width dimension | 90mm | Structural design | Piston gate valve |
| Actuation type | Manual | Sealing principle | Soft |
| Exhaust air function | Without flow control option | Actuator lock | Rotary knob with detent |
| Reset method | Forced guidance | Type of control | Direct |
| Valve function | 2/2 bistable 3/2, bistable | Pressure gauge | G1/4 prepared G1/8 prepared Red-green scale with pressure sensor with pressure gauge with switch indicator |
| Operating pressure | 0bar 20bar | Lap | Overlap |
| Standard nominal flow rate | 8000l/min 18000l/min | Standard nominal flow rate 2-3 | 13201l/min 14900l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Certification | c UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) | UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
| Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) | Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) |
| ATEX category gas | II 2G | ATEX category for dust | II 2D |
| Type of ignition protection for gas | Ex h IIC T6 Gb X | Type of (ignition) protection for dust | Ex h IIIC T60°C Db X |
| Explosive ambient temperature | -10°C <= Ta <= +60°C | Type of mounting | Optionally: Line installation With accessories |
| Mounting position | Any | Piston slide material | POM |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 562178 |
Specifications may be subject to change without notice
