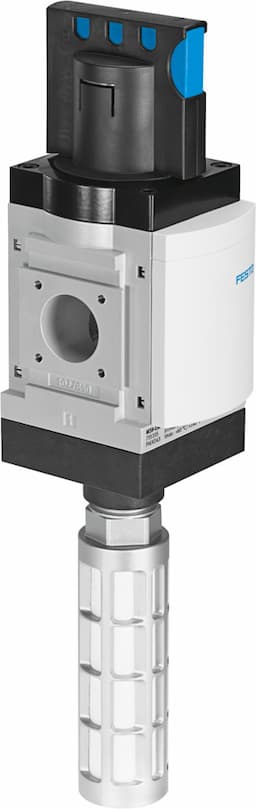

ms9-em-ng-s-vs
Product ID:13086
Updated: 2026/4/3
Key Features
- 1Ensure durable performance with an aluminum die-cast housing and NBR seals. 2、Operate easily via a manual rotary button with a stopper actuation fuse. 3、Prevent throttling using the soft sealing principle for smooth exhaust. 4、Use with compressed air meeting ISO 8573-1:2010 standards for oiled operation. 5、Resist corrosion with a KBK 2 class, RoHs compliant design for -10°C to 60°C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Series | MS | Size | 9 |
| Width dimension | 90mm | Structural design | Piston gate valve |
| Actuation type | Manual | Sealing principle | Soft |
| Exhaust air function | Without flow control option | Actuator lock | Rotary knob with detent |
| Reset method | Forced guidance | Type of control | Direct |
| Symbol | 00991670 | Valve function | 3/2, bistable |
| Operating pressure | 0bar 20bar | Lap | Overlap |
| Standard nominal flow rate | 18000l/min | Standard nominal flow rate 2-3 | 14100l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
| Noise level | 93dB(A) | Ambient temperature | -10°C 60°C |
| Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
| Product weight | 2400g | Pneumatic connection 3 | G1 |
| Piston slide material | POM | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 562954 |
Specifications may be subject to change without notice
