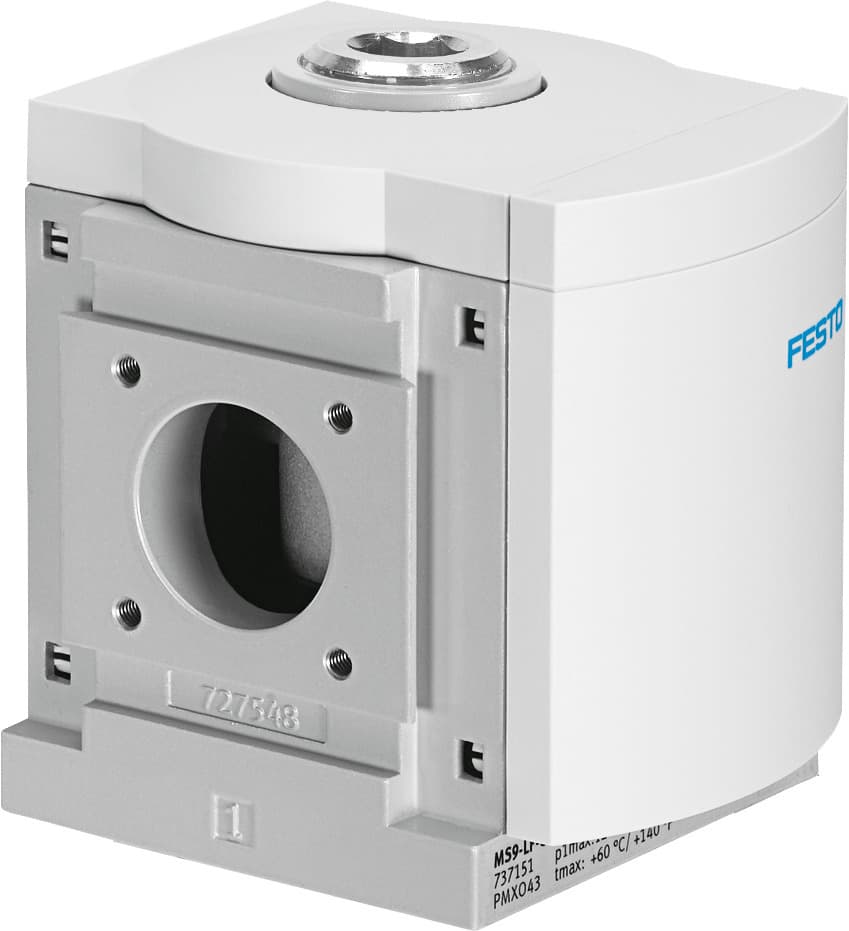

ms9-frm-ng-vs
Product ID:13143
Updated: 2026/4/3
Key Features
- 1Manage compressed air efficiently with high flow rates. 2、Construct robust housing from die-cast aluminum. 3、Resist moderate corrosion with CRC 2 classification. 4、Mount flexibly using front panel or in-line options. 5、Comply with ISO 8573-1:2010 and RoHS standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 9 | Series | MS |
| Mounting position | Any | Structural design | Branching module |
| Symbol | 00991510 | Operating pressure | 0bar 20bar |
| Operating voltage range AC | 0V 250V | DC operating voltage range | 0V 125V |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -10°C 60°C | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 1000g |
| Type of mounting | Optionally: Front panel mounting Line installation With accessories | Pneumatic connection 3 | 1 NPT |
| Pneumatic connection 4 | 1 NPT | Covering material | PA-reinforced |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Material of mounting bracket | Die-cast aluminum | Housing material | Die-cast aluminum |
| Module connector material | Die-cast aluminum | Manufacturer ID | 564148 |
Specifications may be subject to change without notice
