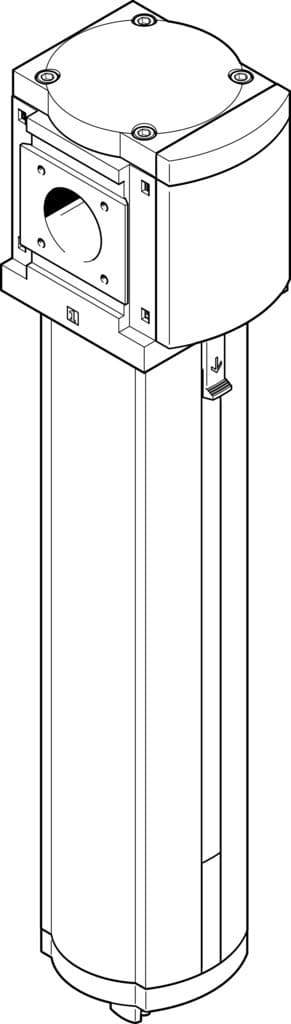

ms9-lfx-3/4-u
Product ID:11995
Updated: 2026/4/3
Key Features
- 1Remove liquid and gaseous oil particles for high air purity. 2、Handle high-demand applications with 6,500 l/min flow rate. 3、Eliminate odors and vapors using active carbon media. 4、Install in-line with optional accessories for flexible mounting. 5、Ensure durability with metal bowl guard and aluminum housing.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 9 | Series | MS |
| Mounting position | Vertical +/- 5° | Structural design | Active carbon filter |
| Symbol | 00991519 | Operating pressure | 0bar 20bar |
| Max. standard flow rate for air quality class | 6500l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [1:4:2] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:4:1] |
| Temperature of medium | 5°C 30°C | Residual oil content | 0.003mg/m3 |
| Ambient temperature | -10°C 60°C | Product weight | 2000g |
| Type of mounting | Optionally: Line installation With accessories | Pneumatic connection 1 | G3/4 |
| Pneumatic connection 2 | G3/4 | Covering material | PA |
| Seals material | NBR | Compressed air filter material | Activated carbon |
| Housing material | Die-cast aluminum | Material of bowl | Wrought aluminum alloy |
| Inspection window material | PA | Manufacturer ID | 552996 |
Specifications may be subject to change without notice
