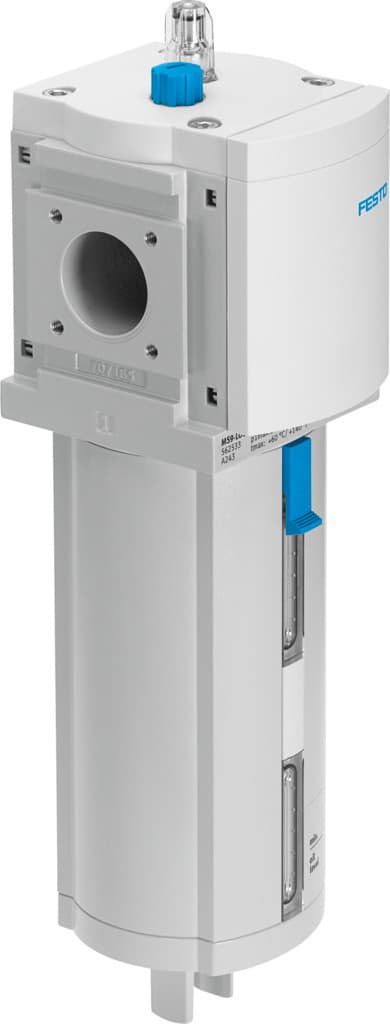

ms9-loe
Product ID:13067
Updated: 2026/4/3
Key Features
- 1Maximize space with a compact design for direct machine mounting. 2、Reduce wear on high-load drives via precise, proportional oil dosing. 3、Ensure efficient lubrication with 8,500-27,000 l/min standard flow. 4、Minimize downtime by topping up oil quickly, even under pressure. 5、Meet ATEX and UL standards for hazardous area safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 9 | Series | MS |
| Mounting position | Vertical +/- 5° | Structural design | Proportional standard oil mist lubricator |
| Max. oil capacity | 490cm3 | Bowl guard | Plastic bowl guard Integrated as metal bowl guard |
| Symbol | 00991532 | Operating pressure | 1bar 16bar |
| Minimum flow rate for lubricator function | 100l/min | Standard nominal flow rate | 8500l/min 27000l/min |
| Certification | c UL us - Recognized (OL) | UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
| Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) | Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) |
| ATEX category gas | II 2G | ATEX category for dust | II 2D |
| Type of ignition protection for gas | Ex h IIC T6 Gb X | Type of (ignition) protection for dust | Ex h IIIC T60°C Db X |
| Explosive ambient temperature | -10°C <= Ta <= +60°C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | Temperature of medium | -10°C 60°C |
| Oil viscosity | ISO VG 32 | Ambient temperature | -10°C 60°C |
| Product weight | 2000g | Type of mounting | Line installation With accessories |
| Covering material | PA-reinforced | Note on materials | RoHS-compliant |
| Material of sub-base | Die-cast aluminum | Seals material | NBR |
| Housing material | Die-cast aluminum | Module connector material | Die-cast aluminum |
| Material of bowl | Wrought aluminum alloy | Shell sealing material | NBR |
| Inspection window material | PA | Manufacturer ID | 562533 |
Specifications may be subject to change without notice
