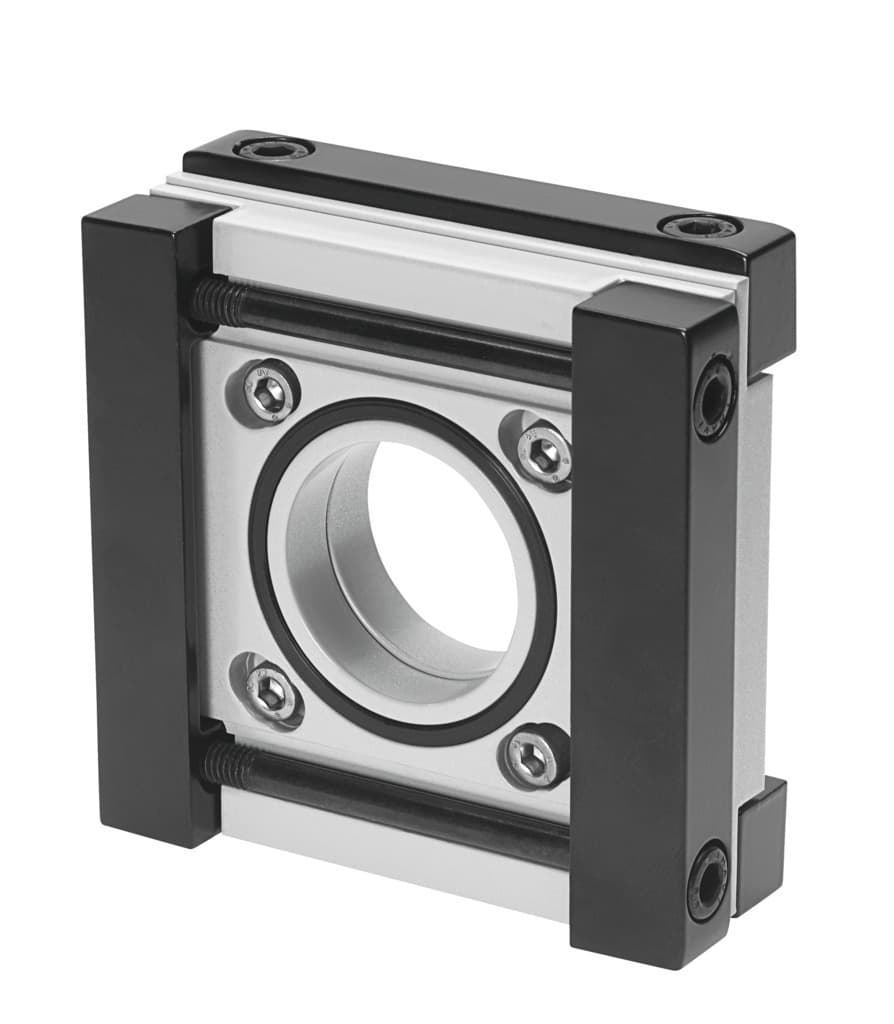

ms9-rmv
Product ID:11967
Updated: 2026/4/3
Key Features
- 1Achieve corrosion resistance class 2 for moderate-stress environments. 2、Operate reliably from -10 °C to 60 °C. 3、Construct with die-cast aluminum, NBR seals, and steel screws. 4、Conform to LABS and VDMA24364 standards for quality. 5、Integrate easily with a robust 920-gram design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 9 | Series | MS |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Product weight | 920g |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Seals material | NBR | Module connector material | Die-cast aluminum |
| Material of screws | Steel | Manufacturer ID | 552952 |
Specifications may be subject to change without notice
