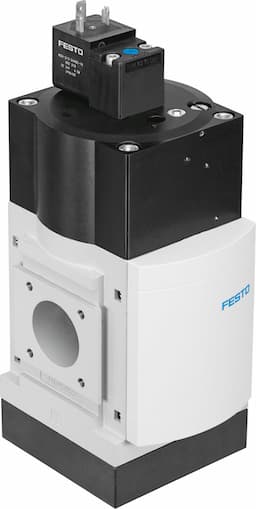

Key Features
- 1Ensure smooth air flow to reduce pressure spikes and extend system life. 2、Support high flow rates up to 16,550 l/min for demanding applications. 3、Feature a robust die-cast aluminum housing for superior durability. 4、Simplify installation with G1/4 and G1/8 port compatibility. 5、Incorporate a mechanical spring reset for enhanced operational safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Series | MS | Size | 9 |
| Width dimension | 90mm | Safety function | Exhausting |
| Performance Level (PL) | Exhaust/up to category 1, performance level c | Structural design | Piston gate valve |
| Actuation type | Electrical | Sealing principle | Soft |
| Exhaust air function | Without flow control option | Manual override | None At pilot control air solenoid valve: non-detenting, at soft start/quick exhaust valve: detenting, self-resetting |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |

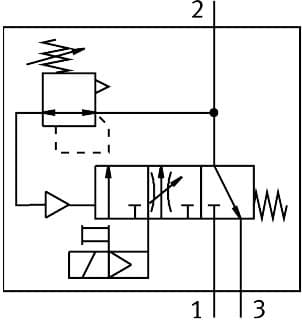

| Symbol | 00995240 | Valve function | 3/2, closed, monostable Pressure build-up function |
| Operating pressure | 3.5bar 16bar | Pressure gauge | G1/4 prepared G1/8 prepared Red-green scale with pressure sensor with pressure gauge with switch indicator |
| Standard nominal flow rate | 8300l/min 16550l/min | Duty cycle | 100% |
| Coil characteristics | 110 V AC: 50/60 Hz, initial power 14.5 VA, holding power 10.5 VA 230 V AC: 50/60 Hz, initial power 14.5 VA, holding power 10.5 VA 24 V DC: 2.7 W 24 V DC: 8.4 W | Nominal operating voltage DC | 110V |
| Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65 | Temperature of medium | 0°C 60°C |
| Ambient temperature | 0°C 60°C | Storage temperature | 0°C 60°C |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 | Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Certification | c UL us - Recognized (OL) | CE marking (see declaration of conformity) | As per EU EMC directive as per EU machinery directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK instructions for machines To UK RoHS instructions | Type of mounting | Optionally: Line installation With accessories |
| Mounting position | Any | Pressure gauge connection | G1/8 G1/4 |
| Electrical connection | Form A Plug as per EN 175301-803 Rectangular design | Housing material | Die-cast aluminum |
| Seals material | NBR | Piston slide material | Brass |
| Cover material | Wrought aluminum alloy | Lower cover material | PA |
| Manufacturer ID | 562176 |
