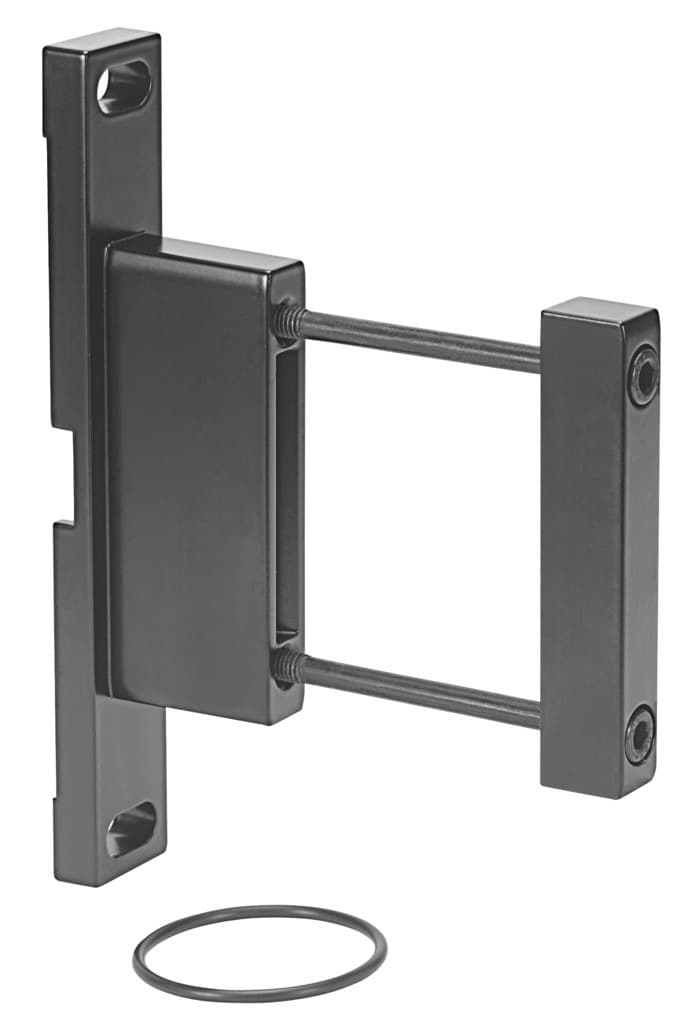

ms9-wp
Product ID:11962
Updated: 2026/4/3
Key Features
- 1Withstand moderate corrosion stress with CRC 2 rating. 2、Meet strict RoHS compliance for eco-friendly use. 3、Construct a robust structure from die-cast aluminum and steel. 4、Operate reliably across a -10°C to 60°C temperature range. 5、Conform to LABS and VDMA industry safety standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 9 | Series | MS |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Product weight | 180g |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Hollow bolt material | Die-cast aluminum | Module connector material | Die-cast aluminum |
| Material of screws | Steel | Bracket material | Die-cast aluminum |
| Manufacturer ID | 552947 |
Specifications may be subject to change without notice
