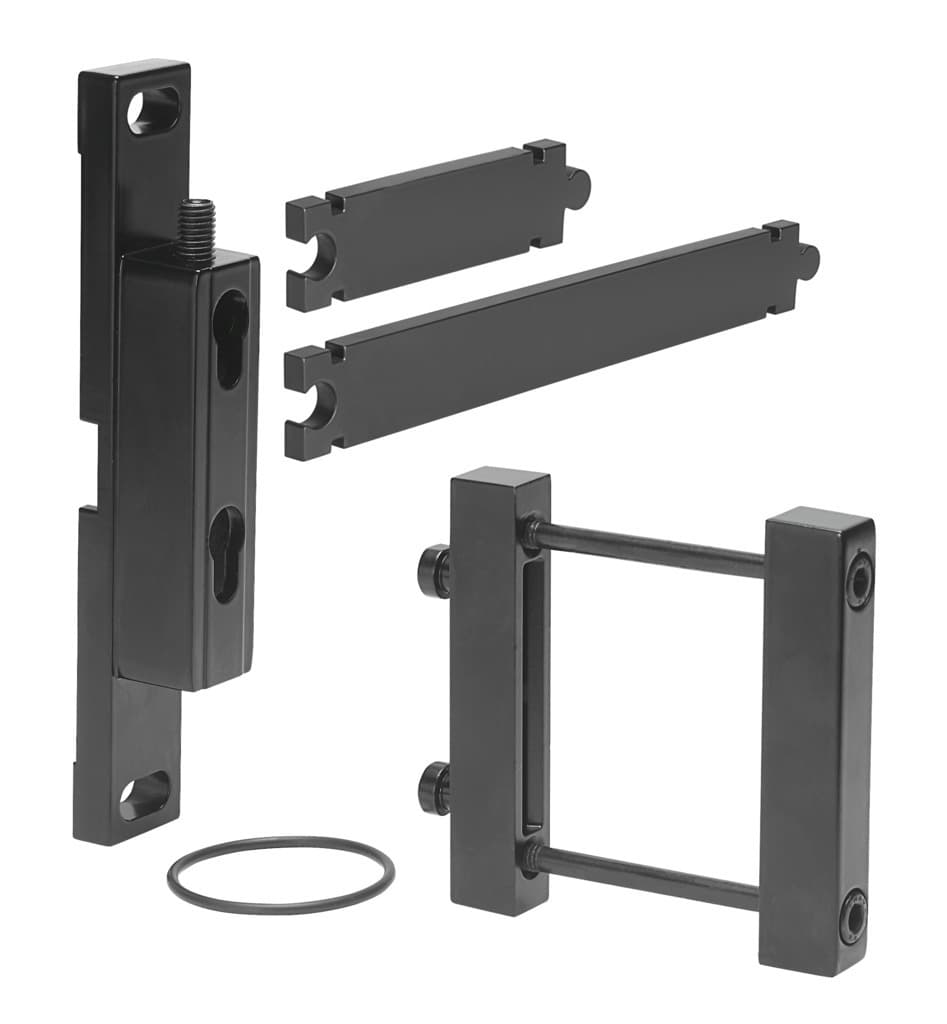

ms9-wpm
Product ID:11963
Updated: 2026/4/3
Key Features
- 1Ensure reliable mounting in compressed air systems with the robust MS9-WPM. 2、Withstand moderate corrosion stress due to its CRC2 resistance class. 3、Meet strict LABS (PWIS) standards VDMA24364-B1/B2-L for safety. 4、Operate reliably in media temperatures from -10°C to 60°C. 5、Handle and install easily with its 220-gram lightweight design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 9 | Series | MS |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Product weight | 220g |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Hollow bolt material | Die-cast aluminum | Module connector material | Die-cast aluminum |
| Material of screws | Steel | Bracket material | Die-cast aluminum |
| Manufacturer ID | 552948 |
Specifications may be subject to change without notice
