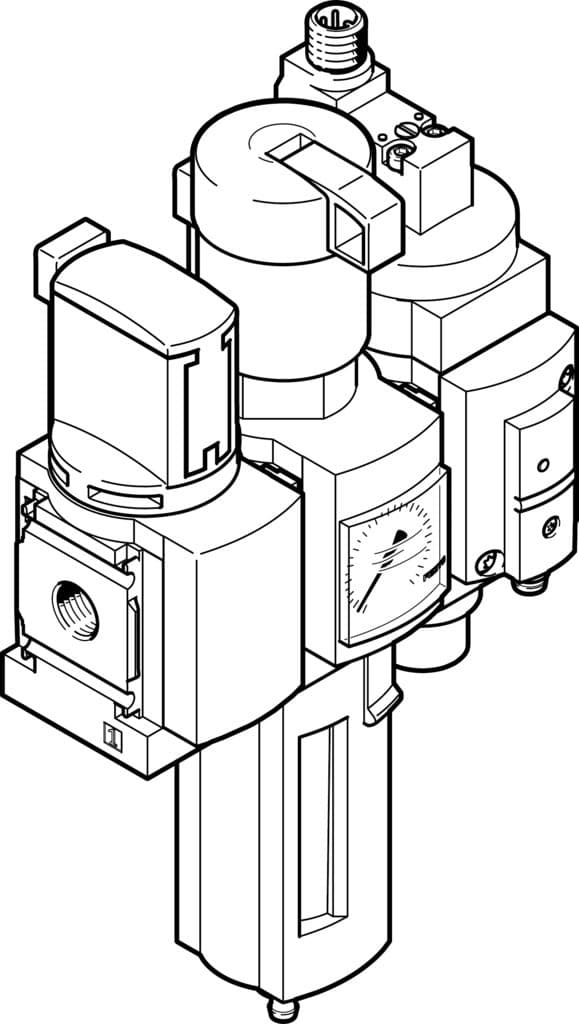

msb4-1/4:c3:j120:d14-wp
Product ID:16008
Updated: 2026/4/3
Key Features
- 1Ensure consistent air pressure for reliable pneumatic performance. 2、Filter compressed air to 40 μm for high purity per ISO standards. 3、Manually drain condensate easily to minimize maintenance downtime. 4、Lock the regulator head securely to prevent accidental pressure changes. 5、Integrate the compact unit vertically to save valuable panel space.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 4 | Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Manually rotating |
| Structural design | Soft start valve Shut off valve Filter regulator with pressure gauge | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
| Bowl guard | Plastic bowl guard | Symbol | 00995364 |
| Pressure gauge | with pressure gauge | Operating pressure | 4bar 14bar |
| Pressure regulation range | 4bar 7bar | Standard nominal flow rate | 1600l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] | Temperature of medium | 0°C 50°C |
| Ambient temperature | 0°C 50°C | Product weight | 1600g |
| Type of mounting | With accessories | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
| Housing material | Die-cast aluminum | Material of bowl | PC |
| Manufacturer ID | 8042666 |
Specifications may be subject to change without notice
