msb4-1/4:c3j1m1-wp
Product ID:10792
Updated: 2026/4/3
Key Features
- 1Ensure clean compressed air with 40 µm filtration to protect equipment. 2、Regulate pressure efficiently with a range up to 12 bar for stability. 3、Achieve a high flow rate of 750 L/min for demanding applications. 4、Simplify connections using three standard G1/4" female threaded ports. 5、Install flexibly in a vertical +/-5° mounting position.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 4 | Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Manually rotating |

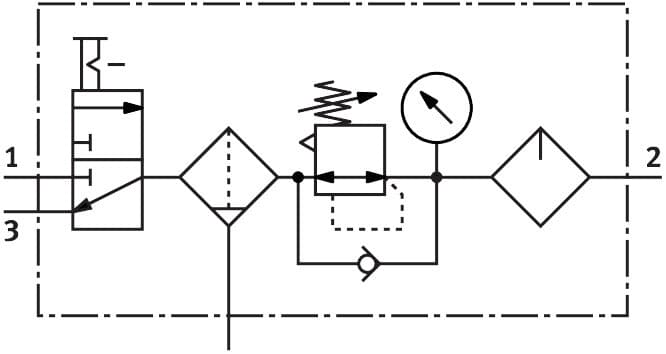

| Structural design | Shut off valve Filter regulator with pressure gauge Standard oil mist lubricator | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
| Bowl guard | Plastic bowl guard | Symbol | 00991595 |
| Pressure gauge | with pressure gauge | Operating pressure | 1.5bar 14bar |
| Pressure regulation range | 1bar 12bar | Standard nominal flow rate | 750l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:-] | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 1500g |
| Type of mounting | With accessories | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
| Housing material | Die-cast aluminum | Material of bowl | PC |
| Manufacturer ID | 542296 |
Specifications may be subject to change without notice
