msb4-1/4:c3j2d1a1f3-wp
Product ID:10794
Updated: 2026/4/3
Key Features
- 1Ensure maximum machine availability with reliable air preparation. 2、Connect easily using the integrated branching module and pressure switch. 3、Regulate pressure infinitely from 1 to 12 bar for precise control. 4、Deliver high-quality air with a 40 μm grade of filtration. 5、Meet ISO 1179-1 and ISO 228-1 standards for guaranteed compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 4 | Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Fully automatic |

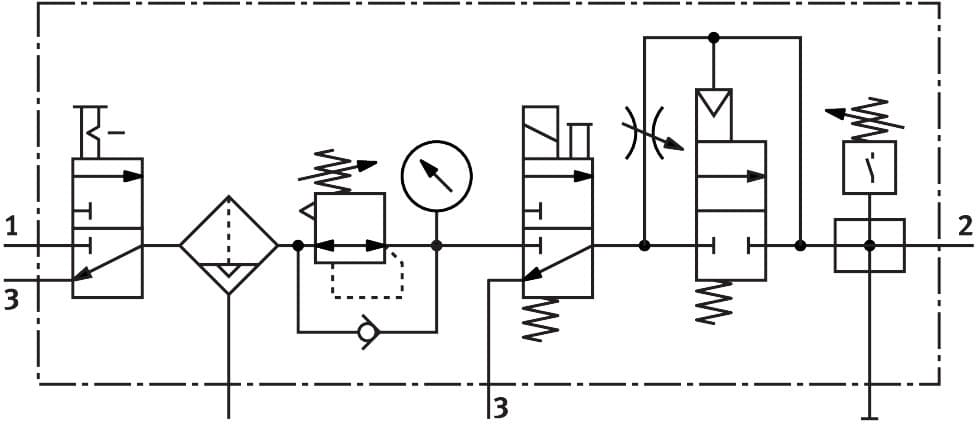

| Structural design | Branching module Soft start valve Pressure switch Shut off valve Filter regulator with pressure gauge | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
| Bowl guard | Plastic bowl guard | Symbol | 00991760 |
| Pressure gauge | with pressure gauge | Operating pressure | 4.5bar 12bar |
| Pressure regulation range | 4bar 12bar | Standard nominal flow rate | 750l/min |
| Coil characteristics | 24 V DC: 1.5 W | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
| For use in the food industry | See supplementary material information | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Temperature of medium | 5°C 60°C | Ambient temperature | 5°C 60°C |
| Product weight | 2000g | Type of mounting | With accessories |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
| Pneumatic connection 3 | G1/4 | Housing material | Die-cast aluminum |
| Material of bowl | PC | Manufacturer ID | 542299 |
Specifications may be subject to change without notice
