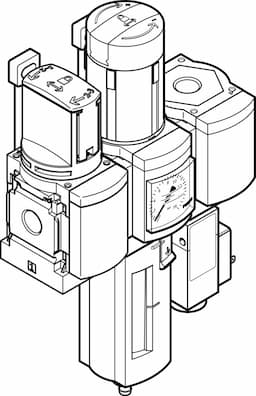

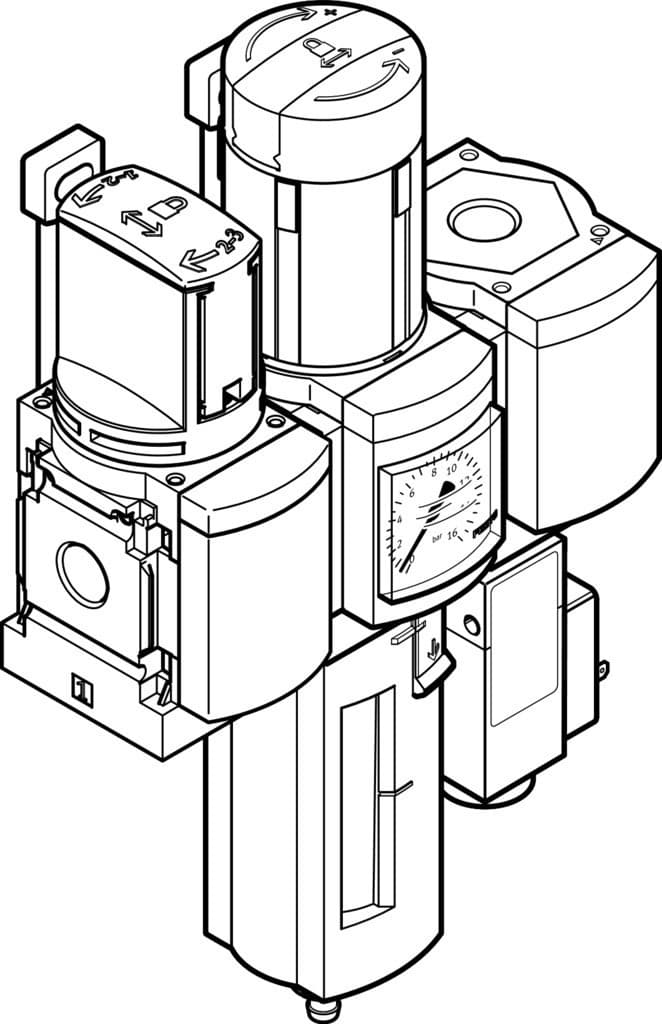

msb4-1/4:c3j2f3-wp
Product ID:10795
Updated: 2026/4/3
Key Features
- 1Ensure 40 µm filtration for clean compressed air. 2、Control pressure with a secure rotary knob lock. 3、Integrate easily into existing Festo MSB4 series setups. 4、Mount flexibly with vertical +/-5° positioning. 5、Reduce maintenance costs with durable, reliable construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 4 | Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Fully automatic |
| Structural design | Branching module Shut off valve Filter regulator with pressure gauge | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
| Bowl guard | Plastic bowl guard | Symbol | 00991758 |
| Pressure gauge | with pressure gauge | Operating pressure | 2bar 12bar |
| Pressure regulation range | 0.5bar 12bar | Standard nominal flow rate | 1300l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] | Temperature of medium | 5°C 60°C |
| Ambient temperature | 5°C 60°C | Product weight | 1500g |
| Type of mounting | With accessories | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
| Housing material | Die-cast aluminum | Material of bowl | PC |
| Manufacturer ID | 542300 |
Specifications may be subject to change without notice
