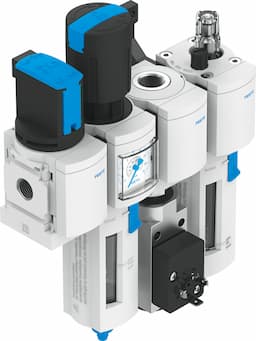

msb4n-1/4:c3j1f3m1-wp
Product ID:10941
Updated: 2026/4/3
Key Features
- 1Filter compressed air efficiently with 40 µm grade. 2、Regulate system pressure from 4 to 12 bar. 3、Eliminate manual draining via automatic condensate removal. 4、Mount vertically with +/-5° angle tolerance for flexible installation. 5、Ensure reliable performance in diverse industrial applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 4 | Series | MS |
| Actuator lock | Rotary knob with integrated lock | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Manually rotating |

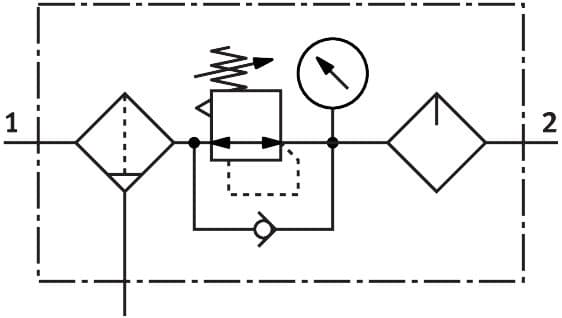

| Structural design | Filter regulator with pressure gauge Proportional standard oil mist lubricator | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
| Bowl guard | Plastic bowl guard | Symbol | 00991761 |
| Pressure gauge | with pressure gauge | Operating pressure | 1.5bar 14bar |
| Pressure regulation range | 1bar 12bar | Standard nominal flow rate | 950l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:-] | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 1700g |
| Type of mounting | With accessories | Pneumatic connection 1 | 1/4 NPT |
| Pneumatic connection 2 | 1/4 NPT | Pneumatic connection 3 | 1/4 NPT |
| Housing material | Die-cast aluminum | Material of bowl | PC |
| Manufacturer ID | 543549 |
Specifications may be subject to change without notice
