msb4n-1/4:c3j2d7a1f3-wp
Product ID:11754
Updated: 2026/4/3
Key Features
- 1Secure actuator operation with a rotary knob and integrated lock. 2、Allow flexible installation via vertical mounting with +/-5° tolerance. 3、Maintain high air quality using a fully automatic condensate drain. 4、Ensure precise pressure regulation with a filter regulator and gauge. 5、Support lubricated operation for various industrial applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 4 | Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Fully automatic |

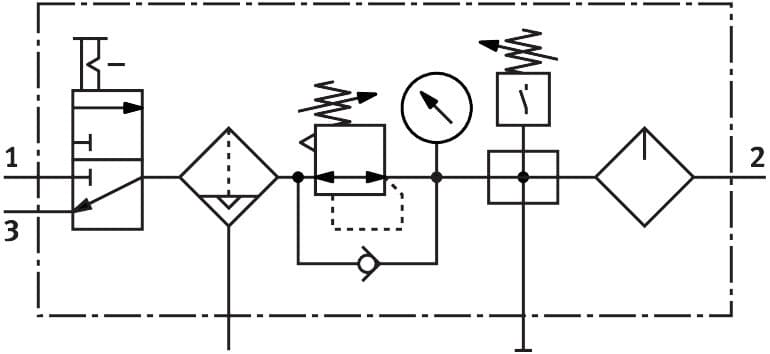

| Structural design | Branching module Shut off valve Filter regulator with pressure gauge Standard oil mist lubricator | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
| Bowl guard | Plastic bowl guard | Symbol | 00991598 |
| Pressure gauge | with pressure gauge | Operating pressure | 4.5bar 10bar |
| Pressure regulation range | 4bar 9bar | Standard nominal flow rate | 750l/min |
| Coil characteristics | 24 V DC: 1.8 W | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Storage temperature | -10°C 60°C |
| For use in the food industry | See supplementary material information | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Temperature of medium | -10°C 50°C | Ambient temperature | -10°C 50°C |
| Product weight | 2200g | Type of mounting | With accessories |
| Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
| Pneumatic connection 3 | G1/4 1/4 NPT | Housing material | Die-cast aluminum |
| Material of bowl | PC | Manufacturer ID | 550485 |
Specifications may be subject to change without notice
