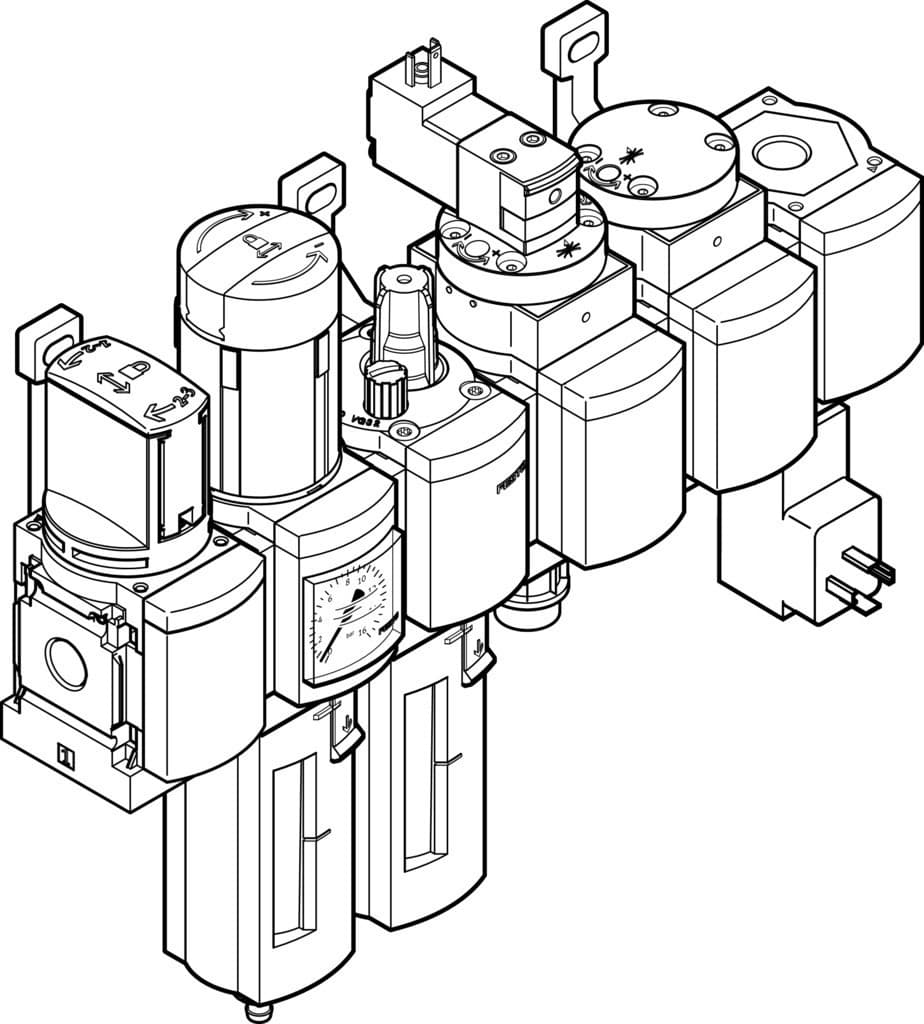

msb4n-1/4:c3j4m1d7a1f3-wp
Product ID:11758
Updated: 2026/4/3
Key Features
- 1Integrate a 5 μm filter for superior compressed air quality. 2、Control and regulate air easily with manual valve and filter/regulator. 3、Mount vertically with +/-5° flexibility for various installations. 4、Ensure safety with lockable regulator and plastic guards. 5、Manage air flow with a branching module and pressure switch.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 4 | Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
| Grade of filtration | 5μm | Condensate drain | Fully automatic |
| Structural design | Branching module Soft start valve Pressure switch Shut off valve Filter regulator with pressure gauge | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
| Bowl guard | Plastic bowl guard | Symbol | 00991759 |
| Pressure gauge | with pressure gauge | Operating pressure | 4.5bar 10bar |
| Pressure regulation range | 4bar 9bar | Standard nominal flow rate | 550l/min |
| Coil characteristics | 24 V DC: 1.8 W | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Storage temperature | -10°C 60°C |
| For use in the food industry | See supplementary material information | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:-] |
| Temperature of medium | -10°C 50°C | Ambient temperature | -10°C 50°C |
| Product weight | 2200g | Type of mounting | With accessories |
| Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
| Pneumatic connection 3 | G1/4 1/4 NPT | Housing material | Die-cast aluminum |
| Material of bowl | PC | Manufacturer ID | 550490 |
Specifications may be subject to change without notice
